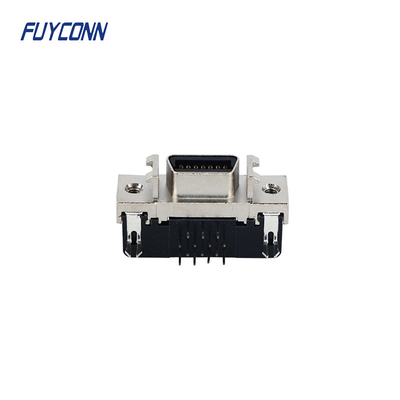

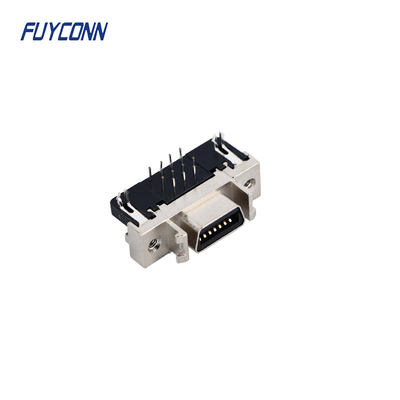

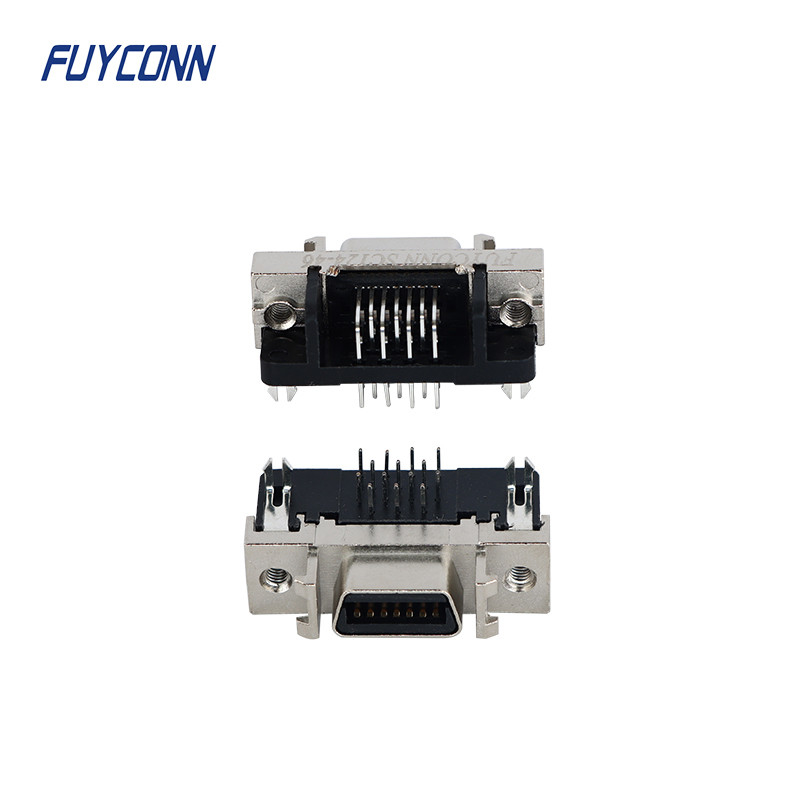

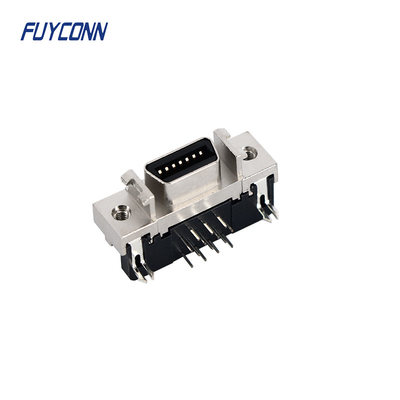

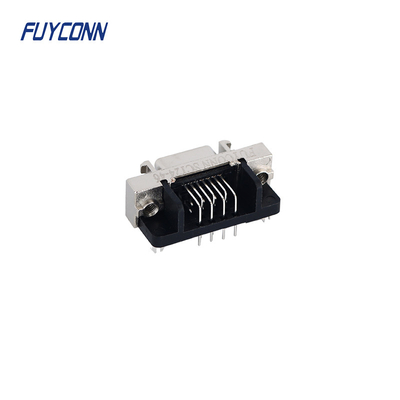

Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB

Certification
China Dongguan Fuyconn Electronics Co,.LTD certification
China Dongguan Fuyconn Electronics Co,.LTD certification
I'm Online Chat Now

Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB

Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB
Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB

Large Image :  Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Model Number: FUYSC124 (14P)
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD0.5-USD2/pc
Packaging Details: Vacuum Tray + Carton
Delivery Time: 5-8 works day
Payment Terms: T/T,Paypal
Supply Ability: 100000/ week

Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB

Description
Product Name: SCSI PCB Connector Gender: Female
Connector Type: CN Type Conatct Material: Phosphorous Bronze
Insulation Material: PBT Insulation Color: Black
PCB Mount: Right Angle No. Of Contacts: 14pin
Contact Plating: Gold Plating (1u",3u",5u",10u",15u") Pitch: 1.27mm
Highlight:

PBT Insulation SCSI Connector

,

Phosphorous Bronze Contact SCSI Connector

,

14 Pin SCSI Female Connector

Zinc Alloy Shell 14 Pin SCSI Connector Right Angle Female PCB

1.27mm pitch PCB R/A 14 pin SCSI MDR Connector, Right Angle PCB 14Pin Female SCSI PCB Connector with Zinc Alloy Shell

SCSI (Small Computer System Interface) is a specialized interface bus designed to facilitate communication between various types of computer peripherals. It provides an advanced, high-speed, versatile, and cost-effective method for interconnecting computer peripherals and consumer electronic devices.

SCSI connectors are available in multiple pin configurations including 14-pin, 20-pin, 26-pin, 36-pin, 50-pin, 68-pin, and 100-pin versions, with both PCB and IDC crimping type options. The internal 100-pin SCSI connector features 100 pins arranged in two rows, with 50 pins in the top row and 50 pins in the lower row.

14 Pin SCSI Connector Right Angle Female PCB with Zinc Alloy Shell
Product Specifications
Type
SCSI Connector
Application
Servo
Gender
Female
Orientation
Right Angle
Insulator Material
PBT
Contact Current Rating
1A AC/DC
Contact Resistance
Max 35m ohm
Insulator
PBT, glass-filled, UL94V-0 rated
Contact Material
Phosphor bronze
Back Shell
Nickel-plated
Insulation Resistance
500MΩ (minimum)
Contact Resistance
35mΩ (maximum)
Number of Pins
14-pin
Electrical Characteristics
Parameter Specification
Current Rating 1A
Withstanding Voltage 500V for one minute
Insulation Resistance 500MΩ min (at DC500V)
Contact Resistance 35mΩ Max
Operating Temperature -55°C to +105°C
Product Features
Feature Specification
Number of Pins 14-pin
Shell Material Steel, Nickel Plated
Housing Material PBT
Contact Material Phosphor bronze
Gold Plating Options 1U", 3U", 5U", 10U", 15U", 30U"
