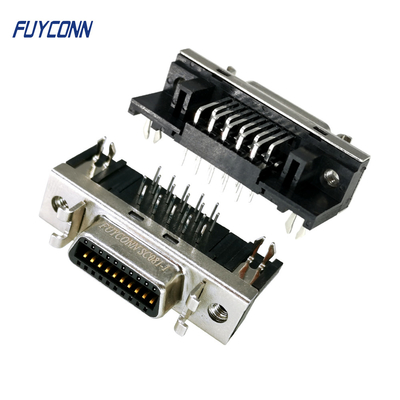

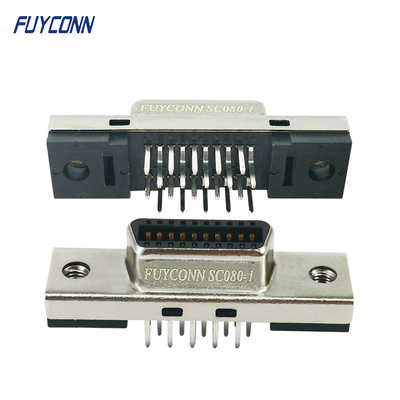

PBT Insulation SCSI MDR Connector Female / Male 1.27mm Pitch 20pin

Large Image : PBT Insulation SCSI MDR Connector Female / Male 1.27mm Pitch 20pin

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Model Number:	20P SCSI Connector

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD0.2-USD2/pc
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	5-8 works day
Payment Terms:	T/T, Paypal
Supply Ability:	100000/ week

Contact Now

PBT Insulation SCSI MDR Connector Female / Male 1.27mm Pitch 20pin

Description

Connector Type:	CN Type	No.of Contact:	20 Pin
Contact Material:	Brass Gold Plating	Insulation Material:	PBT
Insulation Color:	Black	Pitch:	1.27mm
Highlight:	20pin SCSI Connector , PBT Insulation Material SCSI Connector , 1.27mm Pitch SCSI MDR Connector

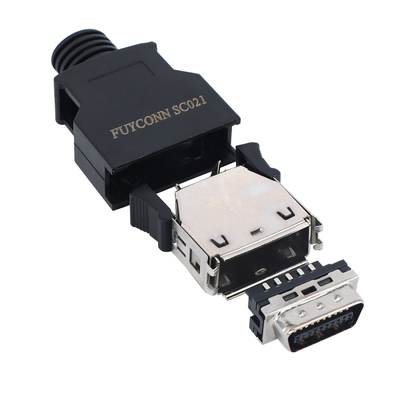

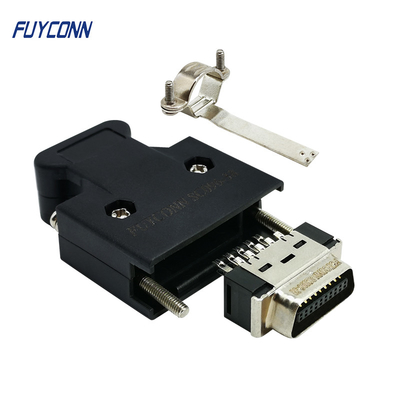

20pin SCSI Connector PCB Solder Cup IDC Crimping Female Male 1.27mm Connector

SCSI (Small Computer System Interface), is a kind of more special interface bus, equipped with a variety of types of peripherals to communicate. Advanced High Speed A versatile, high-speed, and low-cost method of interconnecting a varietyof computer peripherals and consume electronic devices.

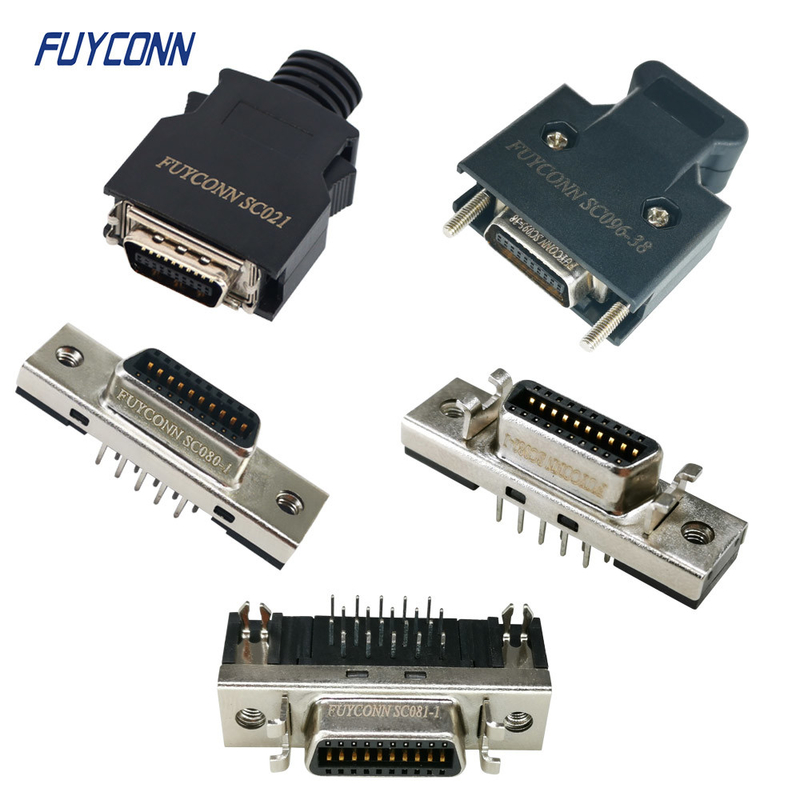

The SCSI Connector are 14pin, 20pin, 26pin, 36pin, 50pin, 68pin and 100pin, and PCB / IDC Crimping type SCSI Connector versions. The internal 100 pin SCSI connector has 20 pins arranged in two rows one on top of the other. The top row has 10 pins and the lower row has 10 pins.

Product features

No. of pin	20pin
shell :	Stell, Nickel Plated
Housing :	PBT
Contacts :	Phosphor bronze
Gold plating	1U", 3U", 5U", 10U", 15U",30U"

Electrical characteristics

Current Rating	1AMP
Withstanding Voltage	500v for one minute
Insualtion Resistance	500MΩ min (at DC500V)
Contact Resistance	35MΩ Max)
Operating temperature :	-55°C to +105°C
