Male Solder Servo Mini D Ribbon Connector SCSI 36 Pin Brass Gold Plated

Large Image : Male Solder Servo Mini D Ribbon Connector SCSI 36 Pin Brass Gold Plated

Product Details:

Place of Origin:	Dongguan
Brand Name:	FUYCONN
Model Number:	FUYSC115-36P

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	1-2 weeks
Payment Terms:	T/T
Supply Ability:	500000pcs per Month

Contact Now

Male Solder Servo Mini D Ribbon Connector SCSI 36 Pin Brass Gold Plated

Description

Product Name:	SCSI Solder Connector	Contact Material:	Brass Gold Plated
Insulator Material:	PBT	Housing:	ABS
Termination:	Solder Terminal	Gender:	Male
Pitch:	1.27mm	No. Of Contact:	36 Pin
Type:	CN Type	Color:	Black
Highlight:	CN Type Mini D Ribbon Connector , SCSI Mini D Ribbon Connector , Solder Servo SCSI Connector

Male Solder Servo Mini D Ribbon Connector SCSI 36 Pin Brass Gold Plated

Product Overview

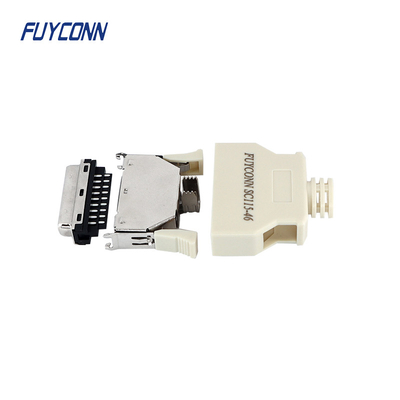

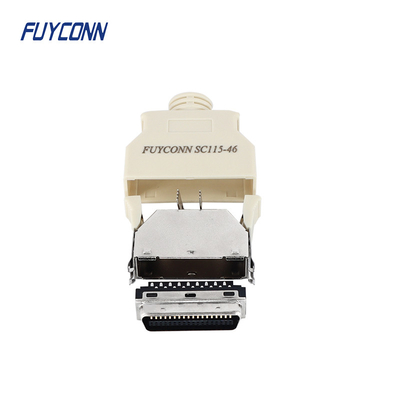

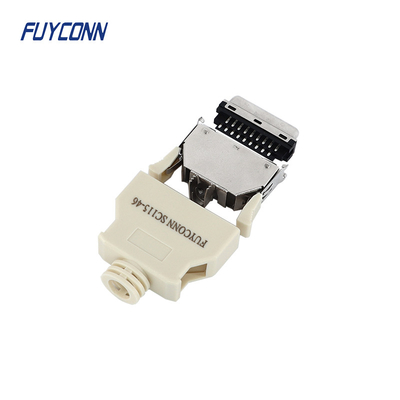

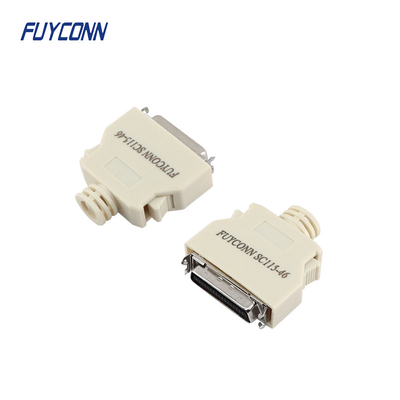

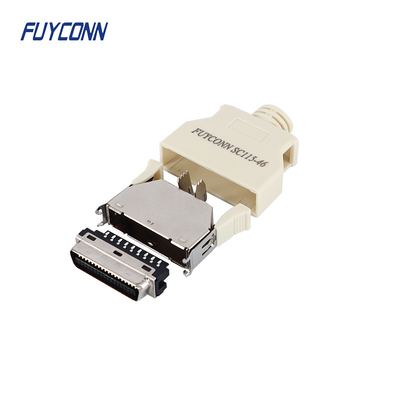

SCSI 36 Pin Mini D Ribbon Male Solder Servo Connector, 36pin Solder Cable MDR Male SCSI Connector with Plastic Dust Cover

SCSI (Small Computer System Interface) Servo Connector is a specialized interface bus designed to facilitate communication with various types of peripherals. This advanced, high-speed solution provides a versatile and cost-effective method for interconnecting computer peripherals and consumer electronic devices.

The Mini D Ribbon (MDR) SCSI Connector is available in multiple configurations including 20-pin, 26-pin, and solder-type SCSI connector versions, all featuring protective plastic covers.

Material Specifications

Component	Material
Contact Material	Brass
Insulator	PBT
Housing Material	ABS

Product Features

Feature	Specification
Product Type	SCSI Connector
Product Line	Solder Connector
Gender	Male
Connector Style	Plug
Centerline	1.27mm
Number of Positions	36 pin
Contact Plating	Gold Flash 1U", 3U", 5U", 10U", 15U", 30U"
Insulator Color	Black
Shielded	Yes
Orientation	180 Degree Cable Exit
Type	CN

Electrical Specifications

Parameter	Specification
Current Rating	2 Amp
Voltage Rating	AC 1000V for minute
Insulator Resistance	1000 MΩ min. at DC 500V
Contact Resistance	30mΩ max. at DC 100mA
Operation Temperature	-55°C to +105°C

Technical Diagram
