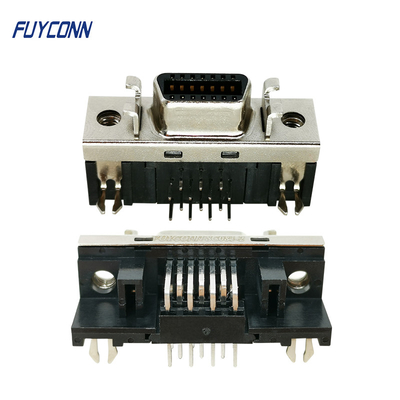

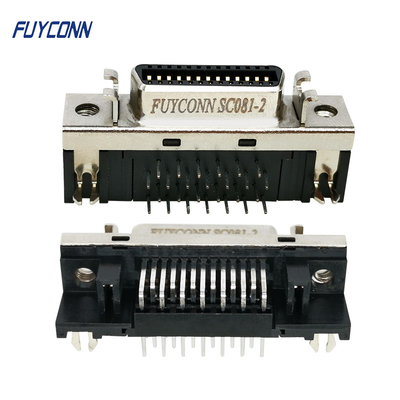

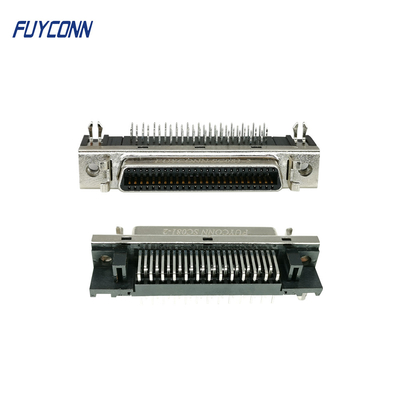

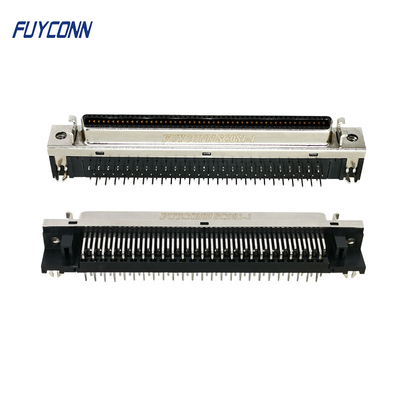

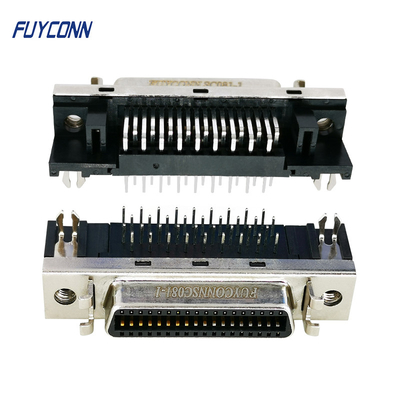

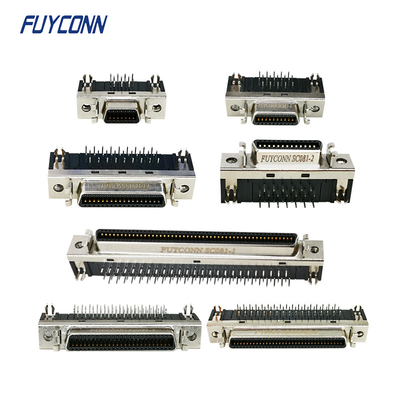

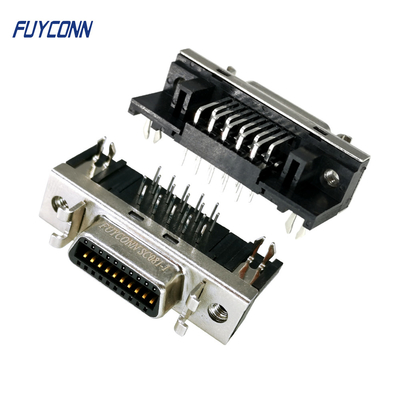

PCB SCSI Female Connector 1.27mm Right Angle 14P 20P 26P 36P 50P 68P 100P SCSI Connector

Large Image : PCB SCSI Female Connector 1.27mm Right Angle 14P 20P 26P 36P 50P 68P 100P SCSI Connector

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Model Number:	FUFUYSC081

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD0.2-USD2/pc
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	5-8 works day
Payment Terms:	T/T,Paypal
Supply Ability:	100000/ week

Contact Now

PCB SCSI Female Connector 1.27mm Right Angle 14P 20P 26P 36P 50P 68P 100P SCSI Connector

Description

Connector Type:	CN Type	No.of Contact:	14/20/26/50/68/100 Pin
Contact Material:	Brass Gold Plating	Insulation Material:	PBT
Insulation Color:	Black	Pitch:	1.27mm
Highlight:	SCSI Connector , PCB SCSI Connector , Female SCSI Connector

PCB SCSI Female Connector 1.27mm Right Angle 14P 20P 26P 36P 50P 68P 100P

PCB SCSI Connector Right Angle Female 1.27mm Connector 14P 20P 26P 36P 50P 68P 100P

1.27mm pitch R/A Female 68pin SCSI Servo Connector, Mini D Ribbon MDR Connector Right Angle PCB 68Pin SCSI Female Connector

Technical Specifications

Type: SCSI Connector
Application: Servo
Gender: Female
Orientation: Right Angle
Insulator material: PBT
Contact Current Rating: 1A AC/DC
Contact Resistance: Max 35m ohm
No. of Pin: 68pin

Product Features

Feature	Specification
No. of pin	68pin
Shell	Steel, Nickel Plated
Housing	PBT
Contacts	Phosphor bronze
Gold plating	1U", 3U", 5U", 10U", 15U", 30U"

Electrical Characteristics

Characteristic	Value
Current Rating	1AMP
Withstanding Voltage	500v for one minute
Insulation Resistance	500MΩ min (at DC500V)
Contact Resistance	35MΩ Max
Operating temperature	-55°C to +105°C

Material Composition

Insulator: PBT, glass-filled, UL94V-0 rated
Contact: Phosphor bronze
Back shell: Nickel-plated
Insulation resistance: 500MΩ (minimum)
Contact resistance: 35mΩ (maximum)
