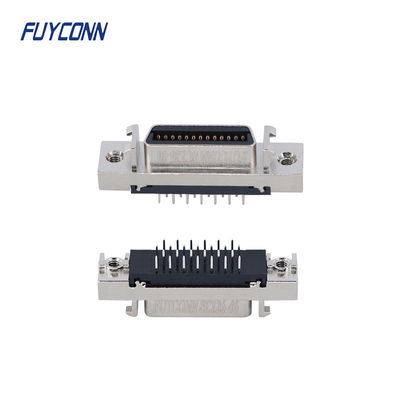

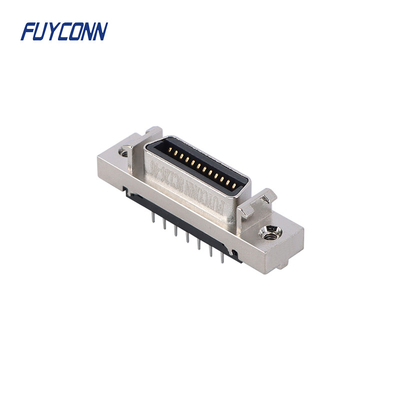

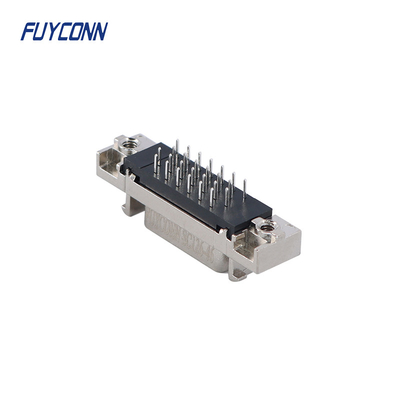

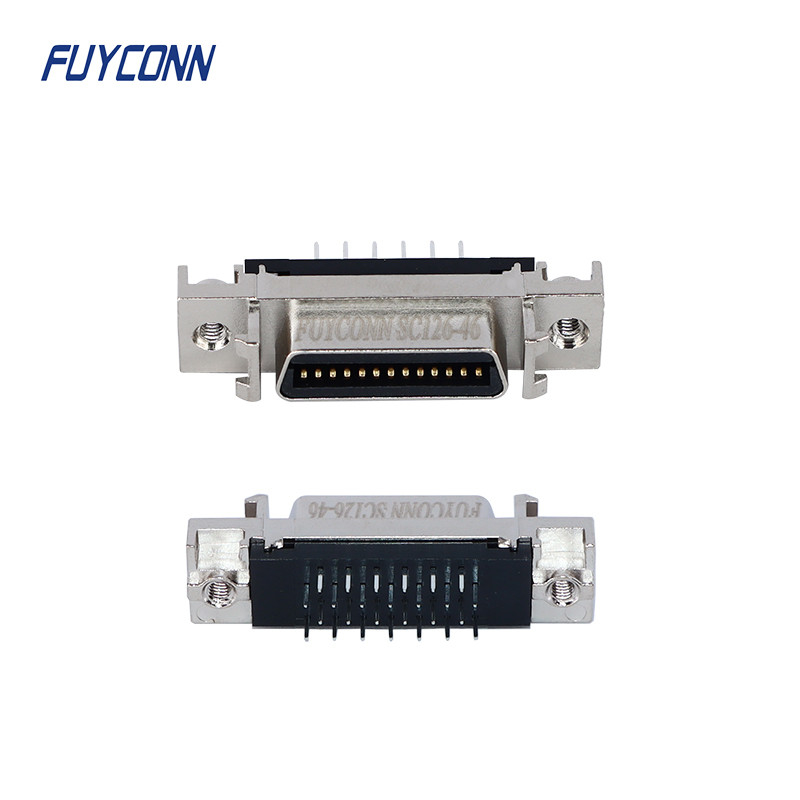

SCSI 26pin Connector , Female MDR Servo Connector W/ Zinc Alloy Shell

Large Image : SCSI 26pin Connector , Female MDR Servo Connector W/ Zinc Alloy Shell

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Model Number:	FUYSC126 (26P)

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD0.5-USD2/pc
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	5-8 works day
Payment Terms:	T/T,Paypal
Supply Ability:	100000/ week

Contact Now

SCSI 26pin Connector , Female MDR Servo Connector W/ Zinc Alloy Shell

Description

Product Name:	SCSI PCB Connector	Gender:	Female
Connector Type:	CN Type	Conatct Material:	Phosphorous Bronze
Insulation Material:	PBT	Insulation Color:	Black
PCB Mount:	Straight	No. Of Contacts:	26pin
Contact Plating:	Gold Plating (1u",3u",5u",10u",15u")	Pitch:	1.27mm
Shell:	Zinc Alloy
Highlight:	Female MDR Servo Connector , 26pin Servo Conector , Zinc Alloy Shell 26pin Connector

SCSI 26pin Connector, Female MDR Servo Connector W/ Zinc Alloy Shell

Product Overview

1.27mm Pitch Mini D Ribbon MDR PCB Straight SCSI 26pin Connector Female MDR Servo Connector with Zinc Alloy Shell

Download Product Catalog (PDF)

SCSI (Small Computer System Interface) is a specialized interface bus designed for communication with various types of peripherals. It provides an advanced, high-speed, versatile, and cost-effective method of interconnecting computer peripherals and consumer electronic devices.

SCSI Connectors are available in 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, and 100pin configurations, with both PCB and IDC Crimping type versions. The internal 100 pin SCSI connector features 100 pins arranged in two rows.

Technical Specifications

Type	SCSI Connector
Application	Servo
Gender	Female
Orientation	Right Angle
Insulator Material	PBT
Contact Current Rating	1A AC/DC
Contact Resistance	Max 35m ohm
Insulator	PBT, glass-filled, UL94V-0 rated
Contact Material	Phosphor bronze
Back Shell	Nickel-plated
Insulation Resistance	500MΩ (minimum)
Contact Resistance	35mΩ (maximum)
Number of Pins	26pin

Electrical Characteristics

Current Rating	1AMP
Withstanding Voltage	500V for one minute
Insulation Resistance	500MΩ min (at DC500V)
Contact Resistance	35MΩ Max
Operating Temperature	-55°C to +105°C

Product Features

Number of Pins	26pin
Shell	Steel, Nickel Plated
Housing	PBT
Contacts	Phosphor bronze
Gold Plating Options	1U", 3U", 5U", 10U", 15U", 30U"
