68pin SCSI MDR Connector PCB Solder Cup IDC Crimp 1.27mm CN Type

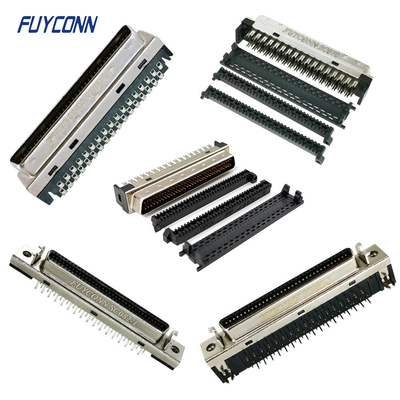

Large Image : 68pin SCSI MDR Connector PCB Solder Cup IDC Crimp 1.27mm CN Type

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Model Number:	68P SCSI Connector

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD0.2-USD2/pc
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	5-8 works day
Payment Terms:	T/T,Paypal
Supply Ability:	100000/ week

Contact Now

68pin SCSI MDR Connector PCB Solder Cup IDC Crimp 1.27mm CN Type

Description

Connector Type:	CN Type	No.of Contact:	68 Pin
Contact Material:	Brass Gold Plating	Insulation Material:	PBT
Insulation Color:	Black	Pitch:	1.27mm
Highlight:	PCB Solder Cup SCSI Connector , 68pin SCSI MDR Connector , CN Type SCSI MDR Connector

68pin SCSI MDR Connector PCB Solder Cup IDC Crimp 1.27mm CN Type

Product Overview

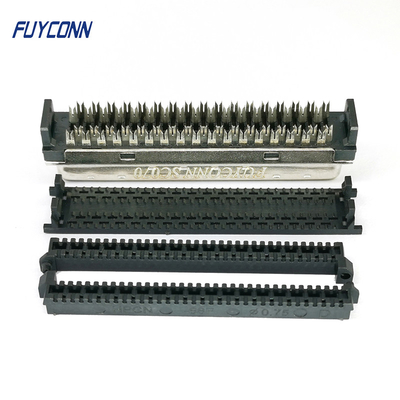

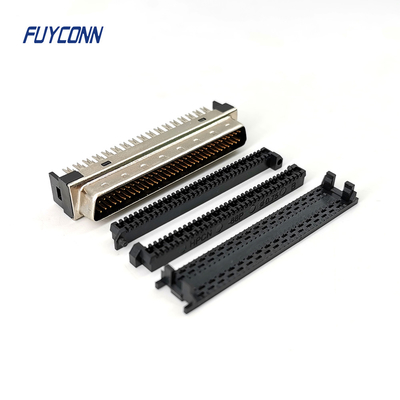

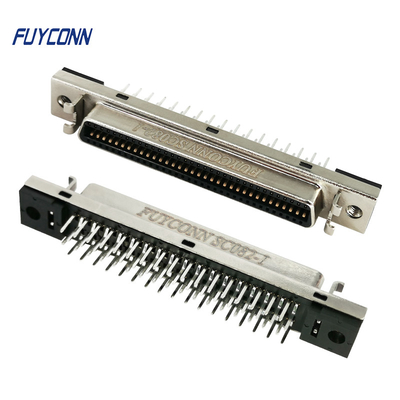

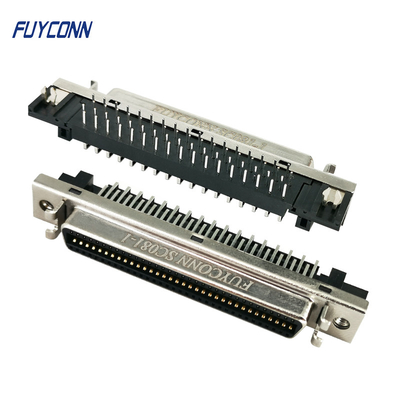

68pin SCSI Connector PCB Solder Cup IDC Crimping Female Male 1.27mm SCSI MDR Connector

Catalog: SCSI CONNECTOR.pdf

SCSI (Small Computer System Interface) is a specialized interface bus designed to facilitate communication between various types of peripherals. It provides an advanced, versatile, high-speed, and cost-effective method of interconnecting computer peripherals and consumer electronic devices.

SCSI connectors are available in multiple pin configurations including 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, and 100pin versions with PCB and IDC crimping types. The internal 100 pin SCSI connector features 68 pins arranged in two rows, with 34 pins in the top row and 34 pins in the lower row.

Product Features

Specification	Details
No. of pin	68pin
Shell	Steel, Nickel Plated
Housing	PBT
Contacts	Phosphor bronze
Gold plating	1U", 3U", 5U", 10U", 15U", 30U"

Electrical Characteristics

Characteristic	Specification
Current Rating	1AMP
Withstanding Voltage	500V for one minute
Insulation Resistance	500MΩ min (at DC500V)
Contact Resistance	35MΩ Max
Operating Temperature	-55°C to +105°C
