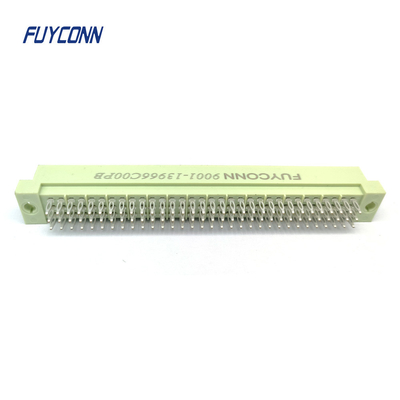

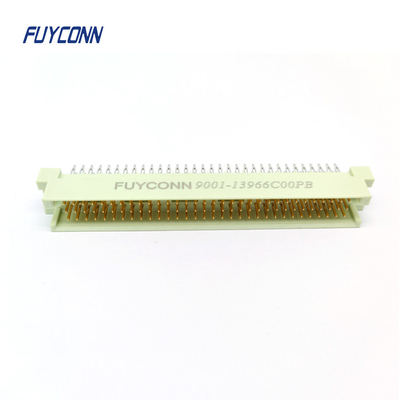

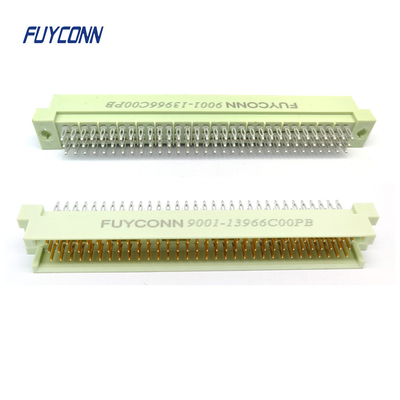

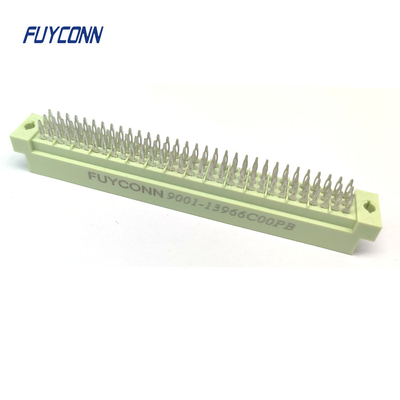

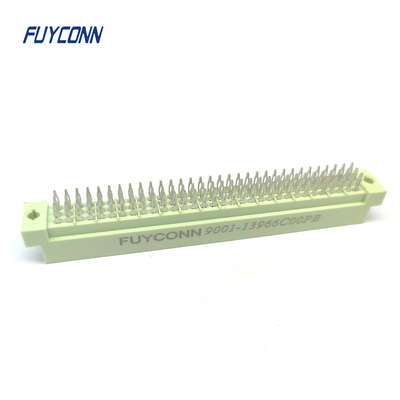

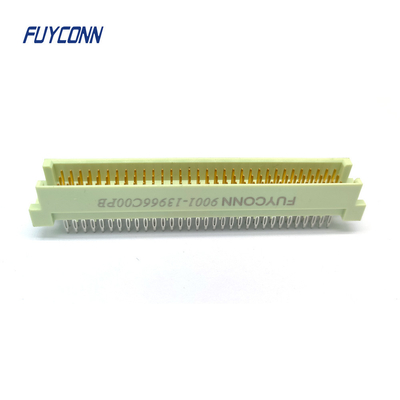

Solderless Male DIN41612 Connector 3 Rows 96pin Press Pin PCB Type

Solderless Male Connector 3 Rows 96pin Press Pin DIN41612 Connector

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.

The DIN 41612 has been widely accepted as a standard for various interconnection applications in telecommunications and data markets worldwide. These connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Available pin configurations include 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin, and 96pin.

The Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance.

With a broad portfolio, it's easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.

DIN 41612 was a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus and NuBus systems. The standard has been withdrawn in favor of international standards IEC 60603-2 and EN 60603-2.
