Centronic 50pin Convertor Male To Male 25 Pair RJ21 Gender Charger Adapter

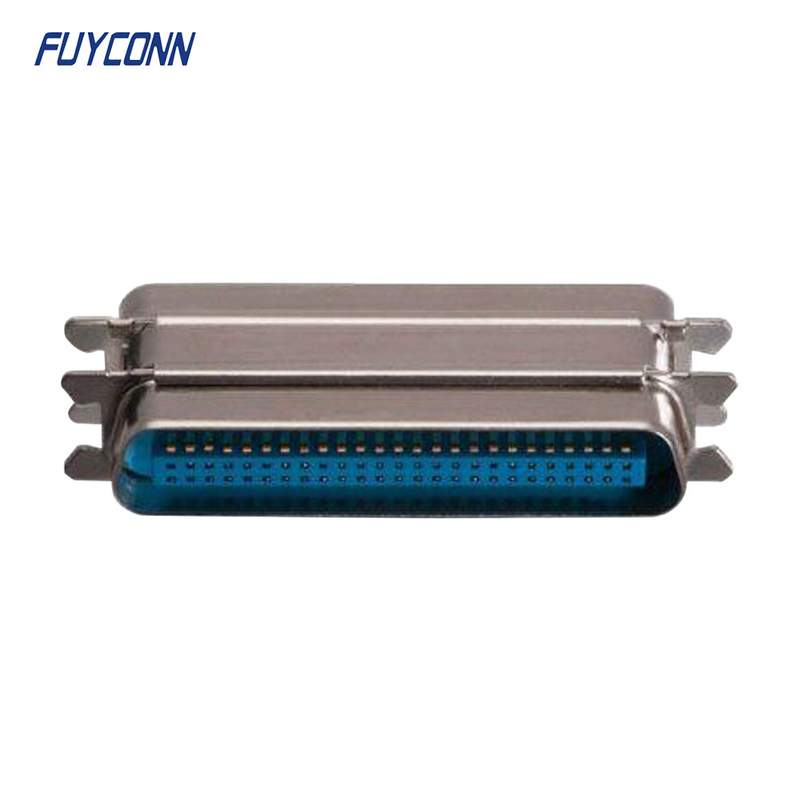

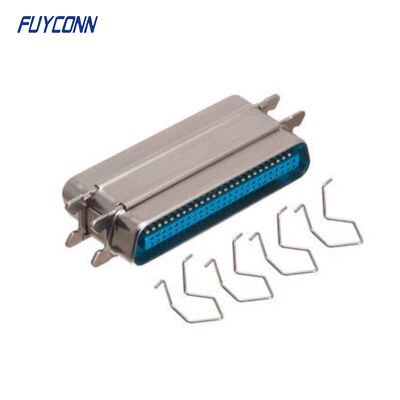

Large Image : Centronic 50pin Convertor Male To Male 25 Pair RJ21 Gender Charger Adapter

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number:	FUYCGC001

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T or Paypal
Supply Ability:	1 million/ month

Contact Now

Centronic 50pin Convertor Male To Male 25 Pair RJ21 Gender Charger Adapter

Description

Connector Line:	Centronic Connector	Connector Type:	Convertor Connector
Pin No.:	50 Pin	Gender:	Male To Male
Pitch:	2.16mm
Highlight:	Male Centronic 50pin convertor , Centronic 50pin convertor Male , 25 pair Centronic 50pin convertor

50pin 25 pair RJ21 Gender Charger Adapter Female to Female convertor

Catalog: CENTRONIC CONNECTOR.pdf

The Centronics 50-pin connector is arranged in two rows of pins, each with 25 contacts. The connector is held in place by bail locks. The 36-pin connector is often used for parallel applications, especially for printers. It is also referred to as an IEEE-1284 Type B connector.

The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black and blue in color.

Centronic 50pin Convertor Male To Male 25 Pair RJ21 Gender Charger Adapter 0

Product Features
1. Product Line:	Centronic Connector
2. Product Name:	Convertor Connector
3. Connector Gender:	female to female
4. Number of Position:	50pin
5. Contact Material:	Phosphore Bronze
6. Contact Plating:	1U", 3U", 5U", 10U", 15U",30U"
7. Insulation Material:	PBT
8. Color	Black or Blue
9. UL Flammability Rating	UL-94-V0
10. Shell:	Nickel plated steel
11. Connector Type	PCB Straight connector
12. Pitch	2.16mm pitch

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Available in Plug & Socket styles
Terminal Option with various types
Connector and hood sold as complete assembly
Available in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Materials

Contact Material:	Phosphor Bronze
Insulator:	PBT (UL 94-V0)
Shell	Nickel Plated Steel

Electrical Character

Current Rating:	5Amp
Withstanding Voltage:	AC 1000v r.m.s
Insulation Resistance:	1000 Megohms Minimum at DC 500V
Contact Resistance:	25M∩ Max Mated
Operation Temperature:	-55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, PCB Board
5, Cable to Panel
6, Cable to cable
7, Computer terminal
8, Telemetering
9, Test Equipment
10, Printer

Advantage

1, ROHS compliant
2, High quality, Competitive price
3, Quick delivery time
4, Free sample available in 2 days
