2x4 Port Female SFP Connector 160 Pin with Light Pipe

Name: 2x4 Port Female SFP Connector 160 Pin with Light Pipe
Brand: Dongguan Fuyconn Electronics Co,.LTD
SKU: FUYSFP2015-28
Price: 15 USD
Availability: InStock

All Products

Centronics Connector
(198)

DIN 41612 Connector
(170)

SCSI Connector
(67)

50 Pin Centronics Connector
(57)

36 Pin Centronics Connector
(20)

64 Pin Centronic Connector
(28)

V.35 Router Connector
(11)

D-sub Connectors
(66)

IDC Cable Assembly
(14)

IDC Crimp Connector
(31)

Champ Connector
(91)

IEEE 1284 Connector
(33)

RJ45 Connector
(9)

Parallel Port Connector
(44)

Female PCB Connector
(49)

Male PCB Connector
(28)

Solder Pin Connector
(36)

Card Connector
(17)

SFP Connector
(16)

Certification

I'm Online Chat Now

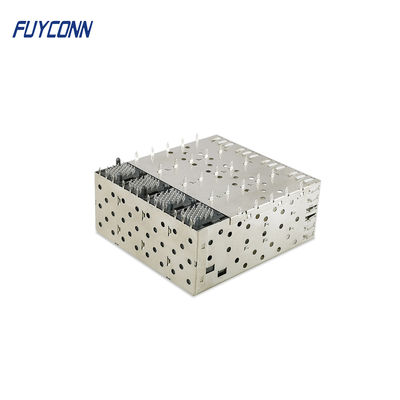

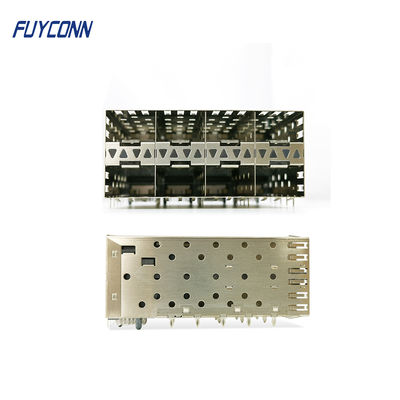

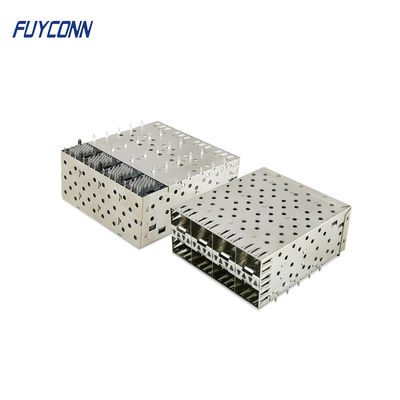

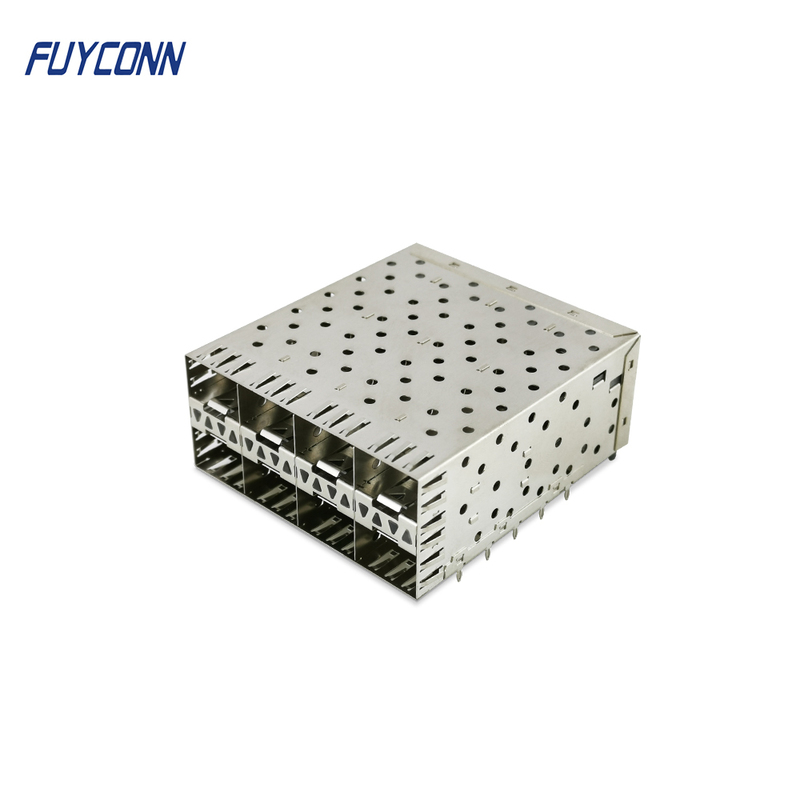

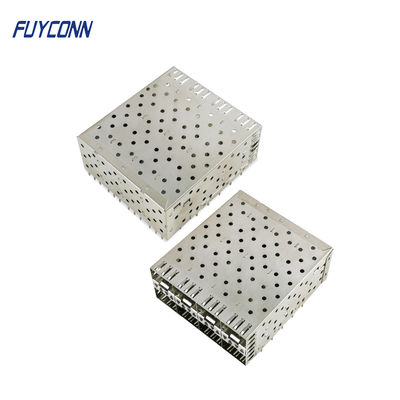

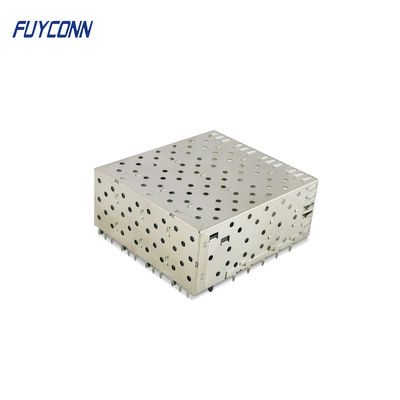

2x4 Port Female SFP Connector 160 Pin with Light Pipe

Large Image : 2x4 Port Female SFP Connector 160 Pin with Light Pipe

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	FUYCONN
Model Number:	FUYSFP2015-28

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	$15

Contact Now

2x4 Port Female SFP Connector 160 Pin with Light Pipe

Description

Number Of Ports:	2*4 Dual Ports	Number Of Terminals:	160 Pin
Contact Pin Material:	Phosphor Bronze	Insulator Material:	PBT
Color:	Nick Silver	Feet Type:	Press Pin
Lightpipe:	With Light Pipe	Current Rating:	1AMP
Withstanding Voltage:	500v For One Minute	Insulator Resistance:	500MΩ Min (at DC500V)
Contact Resistance:	35MΩ Max	Operation Temperature:	-55°C To +105°C
Connector Gender:	Female	Contact Type:	Small Form-factor Pluggable
Finish:	Nickel Silver
Highlight:	2x4 port SFP connector , 160 pin SFP connector , SFP connector with light pipe

2-by-4 Multi-Port Female SFP Cage Assembly Connector with Light

Product Overview

The 2x4 Ports Housing Shielded Press-Fit Stackable 160P SFP Connector is a high-performance Small Form-factor Pluggable (SFP) module connector designed for data communication applications. First introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while supporting data rates up to 4.25Gb/s. The SFP+ variant, introduced in 2006, extends this capability to 10Gb/s.

Key Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Number of Positions:	160pin
Ports:	2*4 (8 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Product Images

Applications

Networking equipment
Routers/Switches
Data/Communications systems
High-end servers
Telecommunications hardware
Fibre Channel and Gigabit Ethernet systems

Packaging & Shipping

Our products are carefully packaged to ensure safe delivery:

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines. All products are UL- and SGS-certified, RoHS compliant, with a defect rate below 0.5%.

Why Choose Us

16 years Centronic Connector production experience
Experienced R&D team
Thousands of molds available
UL Certified, ROHS compliant
Factory-direct pricing
Fast sample service (within 2 days)
Short lead times (1 week for standard products)
No MOQ requirements
Custom branding available
Full production control from molding to assembly

Certifications

Contact Information

Grace Zhong

Wechat: +86 18925547246

Skype: fuyconn001

Phone: +86 18925547246

Office Phone: +86 0769 83690889

Address: 1-2/F, No.108 Hengdong Road, Fengda Industry District, Dongkeng town, DongGuan City, Guangdong Province, China

Tag:

Contact Person: Ms. Grace_ Zhong

Tel: (86) 18925547246

Fax: 86-0769-83690909
