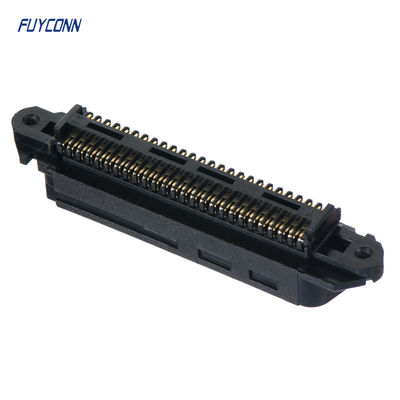

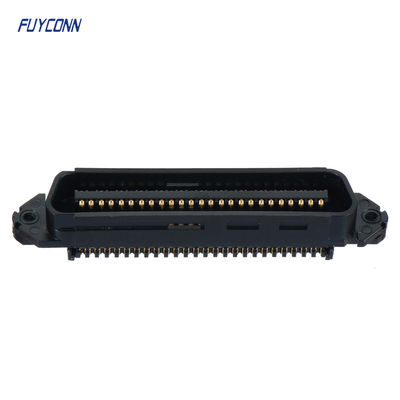

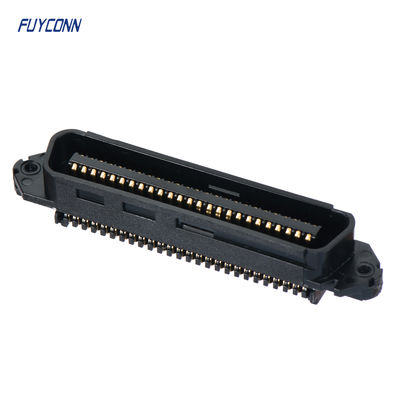

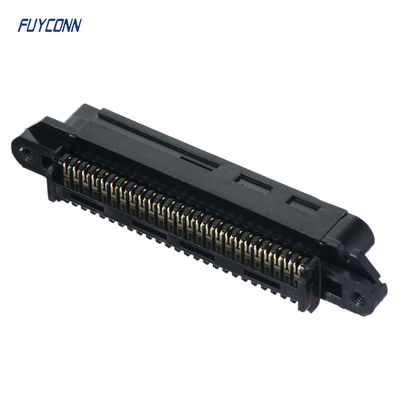

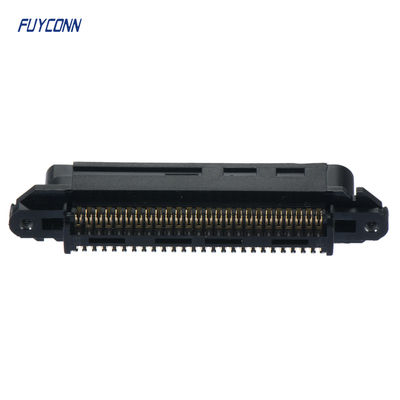

Large Image :  TE 229974-1 Replacement Connector, 50 / 64 Position D-Shaped Connector, Plug, Cable-to-Cable, Cable Mount (Free-Hanging), 2.16 mm [.085 in] Centerline, CHAMP Docking Connectors

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUY57151
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 1 million/ month
Contact Now

TE 229974-1 Replacement Connector, 50 / 64 Position D-Shaped Connector, Plug, Cable-to-Cable, Cable Mount (Free-Hanging), 2.16 mm [.085 in] Centerline, CHAMP Docking Connectors

Description
Product Name: 50 Pin Centronics Connector Product Line: Champ Connector
Type: Centronic IDC Connector Connector Style: Plug
Number Of Terminal: 50 Pin Gender: Male
Replacement: TE 229974-1 Insulator Material: PPO
Pitch: 2.16mm
Highlight:

D-Shaped Centronics connector plug

,

50 position cable mount connector

,

64 position CHAMP docking connector

TE 229974-1 Replacement Connector, 50 / 64 Position D-Shaped Connector, Plug, Cable-to-Cable, Cable Mount (Free-Hanging), 2.16 mm [.085 in] Centerline, CHAMP Docking Connectors

IDC D-sub CHAMP docking connector plug assembly, intended for cable to cable applications with Insulation Displacement Crimp (IDC) mass termination. Has a centerline pitch of 2.16 mm and used for signal circuit application.



D-Shaped connectors provide an electrical connection in a metal shell manufactured in the shape of a "D." Our d-connectors are compact pin and socket connectors designed to transmit power and signal in communications equipment, especially in high-density packages. These connectors are commonly used to connect computer monitors to personal computers as well as for connecting peripheral devices. Our D-Shaped connectors can address the rugged performance requirements of commercial and military applications. We manufacture DB9 connectors (9-pin dsub connector), DB15 connectors (15-pin dsub connector), and DB25 (25-pin dsub connector). Our D-Shaped connectors are produced as female connectors and male connectors. Our portfolio includes D-subminiature connectors (also known as D-sub connectors), which are designed to provide a cost-effective solution for making secure, reliable connections in high-density circuits within complex applications. Our Standard D-Subminiature connectors are available with MIL-DTL-24308 qualification. Our D-Shaped connectors are manufactured under our top product families: AMP, AMPLIMITE, AMPMODU, and Raychem


The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black and blue in color.



TE 229974-1 Replacement Connector, 50 / 64 Position D-Shaped Connector, Plug, Cable-to-Cable, Cable Mount (Free-Hanging), 2.16 mm [.085 in] Centerline, CHAMP Docking Connectors 0



Product Features

  • Number of Positions :  50 | 64

  • Connector & Housing Type : Plug

  • Connector System : Cable-to-Cable

  • Connector Mounting Type : Cable Mount (Free-Hanging)

  • Centerline (Pitch) : 2.16 mm [ .085 in ]



Product Type Features

  • Connector & Housing Type  Plug

  • Connector System  Cable-to-Cable

  • Connector Product Type  Connector Assembly

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  14 | 24 | 36 | 50 | 64

  • Number of Rows  2

  • Compatible With Wire & Cable Type  Discrete Wire | Ribbon Cable | Round Jacketed Cable

Body Features

  • Primary Product Color  Black

  • Ribbon Cable Centerline Spacing  1.27 mm [ .05 in ]

  • Cover Material  Thermoplastic

  • Connector Profile  Low | Standard

Contact Features

  • Contact Mating Area Plating Material Thickness (µin) 30

  • Contact Underplating Material  Palladium Nickel

  • Contact Mating Area Plating Material  Gold (Au) | Gold Flash

  • Contact Base Material  Copper Alloy | Phosphor Bronze

  • Contact Mating Area Plating Material Thickness  .76 µm [ 30 µin ]

  • Wire Contact Termination Area Plating Material  Gold Flash

  • Contact Current Rating (Max) (A) 1 | 3.5

  • Contact Options  Installed

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC)

Mechanical Attachment

  • Mating Retention  With

  • Thread Size  4-40 UNC 2B | M3

  • Mating Retention Type  Screwlocks

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Housing Features

  • Housing Material  Polyphenylene Oxide | Polypheylene Oxide | Thermoplastic

  • Centerline (Pitch)  2.16 mm [ .085 in ]

Dimensions

  • Solid Wire Size (mm²) .05 – .13 | .13 – .32

  • Compatible Insulation Diameter (Max) (mm) 1.14 | 1.15

  • Compatible Insulation Diameter (Max) (in) .045

  • Solid Wire Size (AWG) 26 – 24 | 30 – 26

  • Stranded Wire Size (AWG) 24 | 26 | 27 | 28

  • Stranded Wire Size (mm²) .08 | .09 | .1 | .14 | .33

  • Wire Size (AWG) 24 | 26 | 26 – 24 | 27 | 28 | 30 – 26

Usage Conditions

  • Operating Temperature Range (°C) -55 – 105 | -40 – 75

  • Operating Temperature Range (°F) -67 – 221 | -40 – 167

Operation/Application

  • Shielded  No

  • Circuit Application  Signal
