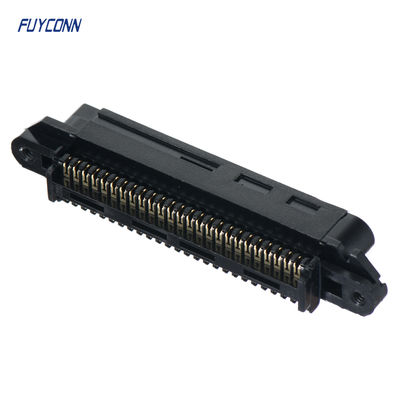

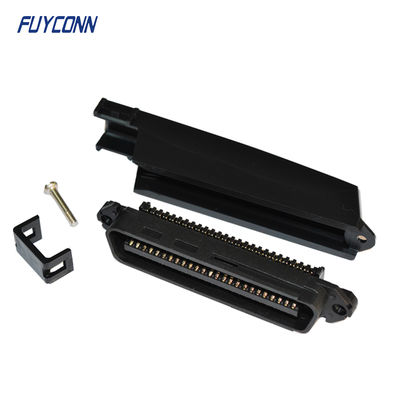

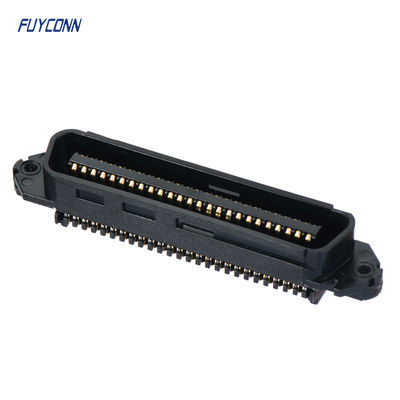

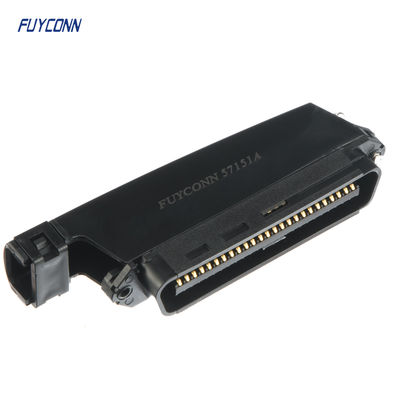

Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch

Large Image : Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number:	FUY57151A

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union or Paypal
Supply Ability:	1 million/ month

Contact Now

Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch

Description

Product Name:	50 Pin Centronics Connector	Product Line:	Champ Connector
Type:	Centronic IDC Connector	Connector Style:	Plug
Number Of Terminal:	50 Pin	Gender:	Male
Replacement:	TE 5229912-1	Insulator Material:	PPO
Pitch:	2.16mm
Highlight:	IDC D-Sub connector kit , 50pos D-Sub plug connector , 2.16mm pitch Centronics connector

TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch

Product Overview

IDC D-sub CHAMP docking plug connector kit designed for cable-to-cable applications with Insulation Displacement Crimp (IDC) mass termination. Features a centerline pitch of 2.16 mm and is used for signal circuit applications.

D-Shaped connectors provide reliable electrical connections in metal shells manufactured in a "D" shape. These compact pin and socket connectors are engineered to transmit power and signal in communications equipment, particularly in high-density packages. Commonly used for connecting computer monitors to personal computers and peripheral devices.

Key Features

Number of Positions: 50 pin
Connector & Housing Type: Plug
Connector System: Cable-to-Board | Cable-to-Cable | Cable-to-Panel
Connector Mounting Type: Cable Mount (Free-Hanging)
Centerline (Pitch): 2.16 mm [.085 in]

Technical Specifications

Product Type

Connector Kit

Termination Method

Insulation Displacement (IDC)

Contact Material

Copper Alloy | Phosphor Bronze

Contact Plating

Gold (Au) | Gold Flash, 30 µin

Housing Material

Polyphenylene Oxide | Thermoplastic

Primary Color

Black

Compatibility & Dimensions

Wire Size (AWG)

24 | 26 | 26-24 | 27 | 28

Insulation Diameter

Max 1.14 mm [.045 in]

Cable Diameter (Max)

10.8-15.88 mm [.425-.625 in]

Number of Rows

Cable Exit Angle

90°
