Amphenol 957 M1002101 Rack & Panel Connectors 2.16MM PITCH 100 PIN IDC TYPE ADSL

Large Image : Amphenol 957 M1002101 Rack & Panel Connectors 2.16MM PITCH 100 PIN IDC TYPE ADSL

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number:	FUY57057-100P

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union or Paypal
Supply Ability:	1 million/ month

Contact Now

Amphenol 957 M1002101 Rack & Panel Connectors 2.16MM PITCH 100 PIN IDC TYPE ADSL

Description

Product Name:	IDC Male Connector	Product Line:	Champ Connector
Type:	Centronic IDC Connector	Connector Style:	Plug
Number Of Terminal:	100 Pos	Gender:	Male
Contact Material:	Phosphore Bronze	Gold Plating:	1u" 3u" 5u" 10u" 15u" 20u"
Replacement:	Amphenol 957 M1002101
Highlight:	Amphenol 957 rack panel connector , 2.16mm pitch Centronics connector , 100 pin IDC ADSL connector

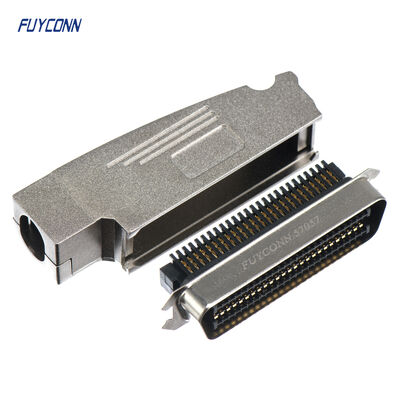

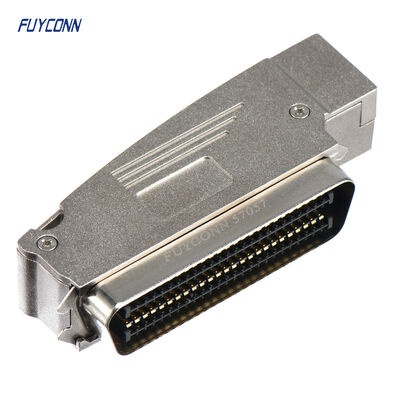

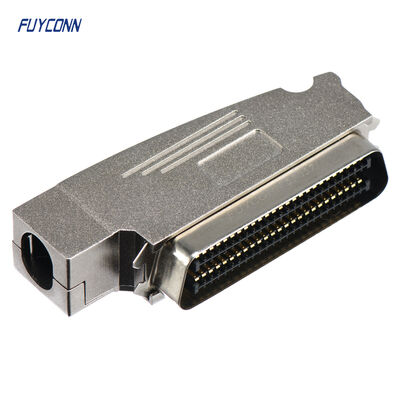

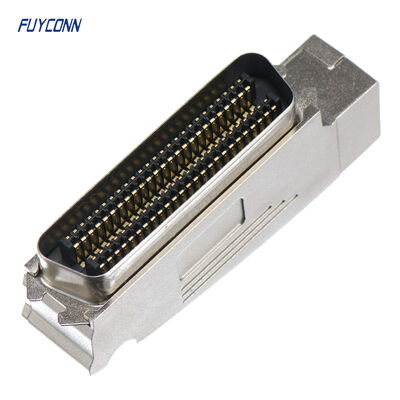

Amphenol 957 M1002101 Rack & Panel Connectors

2.16mm Pitch 100 Pin IDC Type ADSL Connector with Side Cable Entry and Zinc Cover

Product Overview

The Centronic 957 100-pin connector is a male type 2.16mm pitch connector with side cable entry and zinc cover. This connector type originated from Centronics Corporation in the 1970s and became the industry standard for computer-printer connections.

Technical Specifications

Category	Centronic Connector
Product Line	Champ Connector
Type	Centronic IDC Connector
Style	Plug
Terminals	100 pin
Gender	Male
Centerline	2.16mm [0.085in]
Mounting	Side Cable Exit Angle
Cover	Zinc Cover

Common Features

Designed for cable-to-cable and cable-to-PC board applications
Available in plug and socket styles
Multiple terminal options available
Connector and hood sold as complete assembly
Available in low profile hood style
Metal shell provides grounding and shielding capability
Compatible with industry standard connectors

Product Features

Product Type	Centronics IDC Connector
Gender	Male
Connector Style	Plug
Centerline	2.16mm (0.85in)
Positions	100 pin
Contact Plating	Gold Flash 1U", 3U", 5U", 10U", 15U", 30U"
Insulator Color	Black
Shielded	Yes
Orientation	90 Degree Cable Exit
Locking Mechanism	Screwlocks

Materials

Contact Material	Phosphor Bronze
Insulator	PBT (UL 94-V0)
Housing Material	Zinc

Electrical Characteristics

Current Rating	5Amp
Withstanding Voltage	AC 1000v r.m.s
Insulation Resistance	1000 Megohms Minimum at DC 500V
Contact Resistance	25MΩ Max Mated
Operation Temperature	-55°C to +105°C

Applications

VDSL Telecom Equipment
Computer Peripherals
Communication Equipment
RJ21 Cable

Advantages

ROHS compliant, UL-approved
High quality, competitive pricing
Quick delivery time
Free samples available within 2 days
