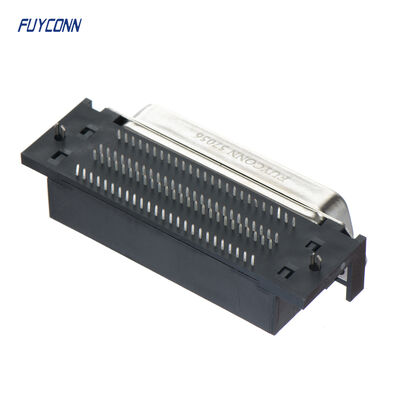

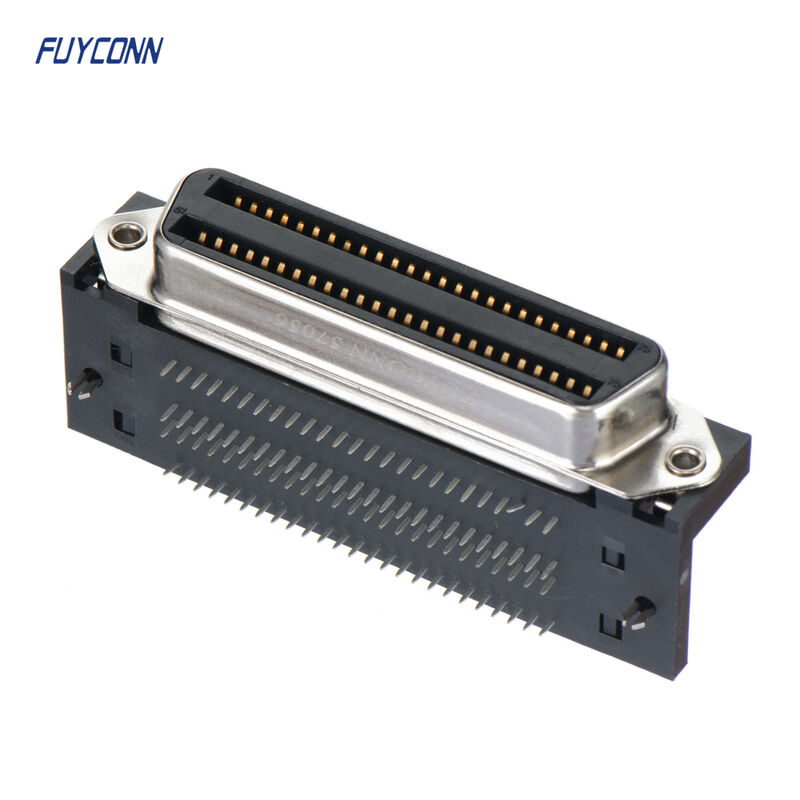

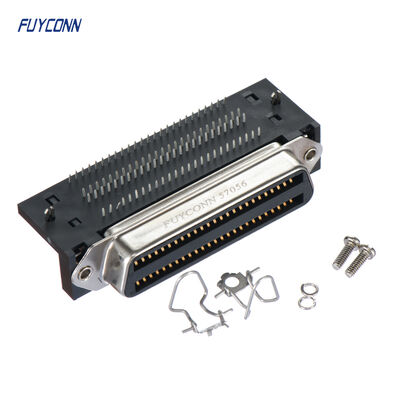

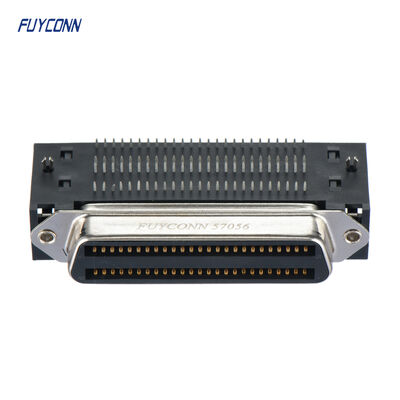

AMP 957F10063B002 100 Pin Female Right Angle Centronic Connector

Large Image : AMP 957F10063B002 100 Pin Female Right Angle Centronic Connector

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number:	FUY57056

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T or Paypal
Supply Ability:	1 million/ month

Contact Now

AMP 957F10063B002 100 Pin Female Right Angle Centronic Connector

Description

Connector Line:	Centronic Connector	Connector Type:	Amphenol 957 Connector
Pin No.:	100 Pin Connector	Gender:	Female Centronic Connector
PCB Mount:	Clips	Contact Type:	PCB Right Angle
Pitch:	2.16mm	Replacement:	AMP 957F10063B002
Highlight:	100 pin Centronic female connector , right angle Centronic connector , AMP Centronic connector with warranty

AMP 957F10063B002 100 Pin Female Right Angle Centronic Connector

Product Overview

Amphenol 957 100-pin Connector Female PCB Right Angle 100-position Centronics Connector designed for reliable PCB board applications with 2.16mm pitch and DIP termination.

Technical Specifications

Product Line	Centronic Connector
Product Name	957 100-pin Connector
Connector Gender	Female Centronic Connector
Number of Positions	100 positions
Contact Material	Phosphor Bronze
Contact Plating	1U", 3U", 5U", 10U", 15U", 30U"
Insulation Material	PBT
Color	Black
UL Flammability Rating	UL-94-V0
Certification	UL Certified
Shell	Nickel plated steel
Connector Type	PCB Right Angle
Pitch	2.16mm pitch
PCB Mounting	Bail Lock

Product Description

The Centronics connector features a plastic bar in the center of the connector body that holds the contact pins. The connector body is typically black or blue in color. Both male and female Centronics connectors are available, with male connectors having side latches that snap into tabs on female connectors.

Key Advantages

ROHS compliant, UL-approved
High quality, competitive pricing
Quick delivery time
Free samples available within 2 days

Common Features

Designed for cable-to-cable and cable-to-PCB board applications
Available in plug and socket styles
Multiple terminal options available
Connector and hood sold as complete assembly
Available in low profile hood style
Metal shell provides grounding and shielding capability
Compatible with industry-standard connectors

Material Composition

Contact Material	Phosphor Bronze
Insulator	PBT (UL 94-V0)
Shell	Nickel Plated Steel

Electrical Characteristics

Current Rating	5 Amp
Withstanding Voltage	AC 1000V r.m.s
Insulation Resistance	1000 Megohms Minimum at DC 500V
Contact Resistance	25MΩ Max Mated
Operation Temperature	-55°C to +105°C

Applications

VDSL Telecom Equipment
Computer Peripherals
Communication Equipment
PCB Board
Cable to Panel
Cable to Cable
Computer Terminal
Telemetering
Test Equipment
Printers
