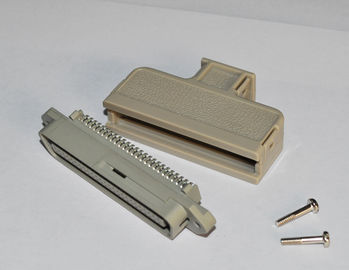

50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip

50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip

50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip 50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip 50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip 50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip

Large Image :  50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip Get Best Price

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUY57050
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month
Detailed Product Description
Product Name: Centronics Connector Pitch: 2.16mm Pitch
Type: Centronic Solder Connector Color: Grey
Number Of Terminal: 50 Pin Gender: Male Plug
Housing: Plastic Cover Or Wire Clip Gold Plating: 1U", 3U", 5U", 10U", 15U",30U"
Contact Material: Brass Insulation Material: PBT
High Light:

female plug connector

,

d type connector

FUY57050 DDK 2.16mm pitch Champ Plug Centronics Connector 50P Male Solder type Header



50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip 0

Detail Description

Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 50 pin
Connector Style:Plug
Gender: Male
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Type: Easy and Soft connection
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: Riveting



Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector



Product Features

Product Type: Centronics Solder Connector
Product Line: Champ Connector
Gender:    Male
Connector Style:  Plug
Certerline : 2.16mm(0.85in)
Number of Position:  50 pin
Contact Plating:  Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color: Black or Blue
Shielded:  Yes
Housing Plastic housing
Mating connector lock:  Screwlocks



Materials

Contact Material:  Brass
Insulator: PBT (UL 94-V0)
Shell Nickel Plated Steel



Electrical Character

Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature:  -55°C to +105°C



Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer



Advantage

1,ROHS compliant, UL-approved

2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
