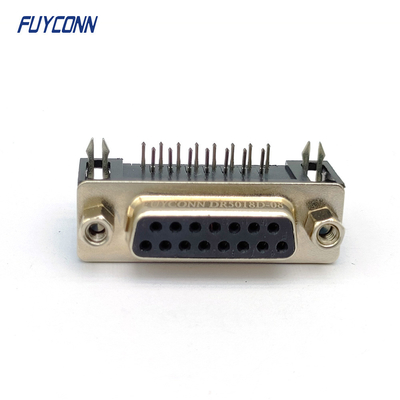

15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)

15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm) 15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm) 15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm) 15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm) 15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm) 15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)

Large Image :  15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUYDR5018D-15P
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month
Contact Now

15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)

Description
Product Name: D-sub Connectors Gender: Female
Type: Right Angle PCB Connector Number Of Terminal: 15 Pin
Contact Mateial: Brass Insulation Material: PBT
Distance From Terminal To Shell: 8.08mm
High Light:

90 degree connector

,

15 pin sub d connector

8.08mm distance 9pin 15pin 25pin 37Pin Female DB Connector, 9 15 25 37 pos Right Angle PCB D-SUB Female Connector w/ Screws

D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
Product Feature

1. Product Name:
D-SUB Connector
2. Product Line:
PCB D-SUB Connector
3. No. of pin
9pin 15pin 25pin 37pin
4. Material:
PBT
5.Contact Type
Right Angle
6. Gender
Female

Technology Parameters

15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm) 0

  • Application

The D-type connector has been used in many applications as a multi-way connector, but it is probably most widely known as the connector used for RS-232 serial links. In fact the
D-type connector was used for the serial link on most computers for many years, and today variations of D-type connectors are still found on most computers.
D-sub or D-subminiature connectors are common types of electrical components typically used in computing to help form connections on a circuit board.



Tag:

90 degree connector,

9 pin d sub connector,

15 pin sub d connector
