Product Details:
|
| Product Category: | DIN41612 Connector | Product Line: | Eurocard Connector |
|---|---|---|---|
| Number Of Terminal: | 10 20 30 32 48 64 96 Pin | Number Of Rows: | 3 Rows |
| Terminals Type: | Straight | Connector Type: | PCB Type |
| Insulator Color & Material: | Grey & PBT | Contact Pin Material: | Phosphor Bronze |
| Contact Plating: | Gold Plating(1u",3u",5u",10u",15u") | Pitch: | 2.54mm Or 5.08mm |
| High Light: | Right Angle DIN 41612 Connector,Straight Male Eurocard Connector,PCB 3 Rows Eurocard Connector |
||

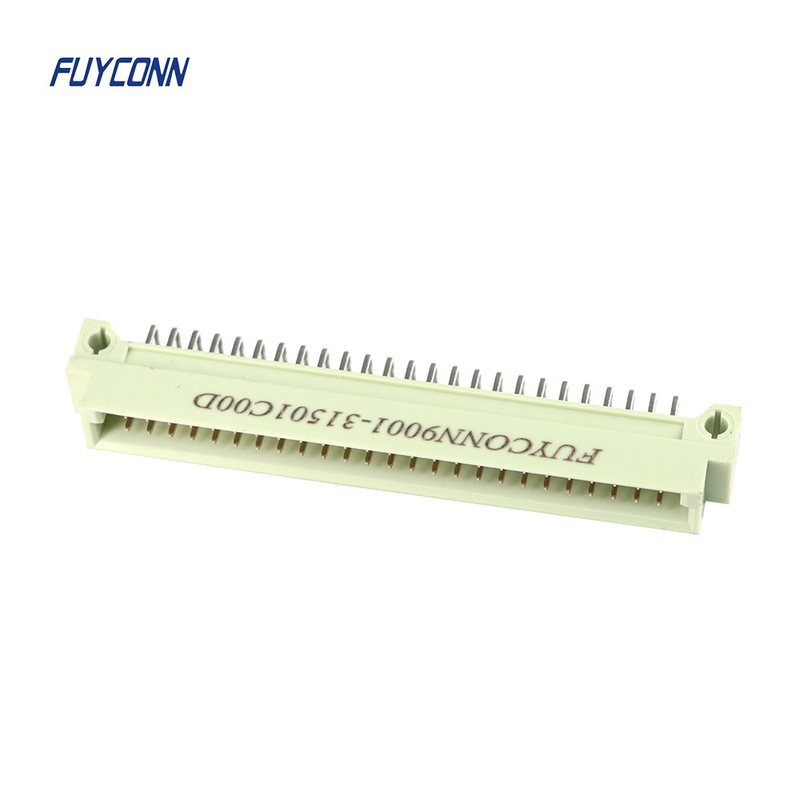

3*32pin 3*10pin 3*16pin 3 rows PCB Straight Male DIN41612 Connector, 5 10 15 16 32 48 64 96 pin DIN 41612 Euro Connector
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.
| Product features: | |
| 1. Product Line: | DIN41612 Connector |
| 2. Product Name: | Eurocard connector |
| 3. Connector Type | PCB DIN 41612 Connector |
| 4. Connector Gender: | Male |
| 5. Number of Position: | 5/10/15/20/30/32/48/64/96 pin |
| 6.Number of rows: | 3 rows |
| 7. Contact Material: | Brass |
| 8. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
| 9. Insulation Material: | PBT |
| 10.Color | Gray |
| 11. Terminal Type | Straight |
| 12. Pitch | 2.54mm or 5.08mm |
| Electrical Specifications | |
| 1. Current Rating: | 5Amp |
| 2. Voltage rating: | DC 1000v per minute |
| 3. Insulator Resistance: | 1000Mn MIN.(at 500V DC) |
| 4. Operation Temperature: | -55°C to +105°C |
Main Application
