Crimping Cable IDC Ribbon Connector , Male 9pin Ribbon D-SUB Connector

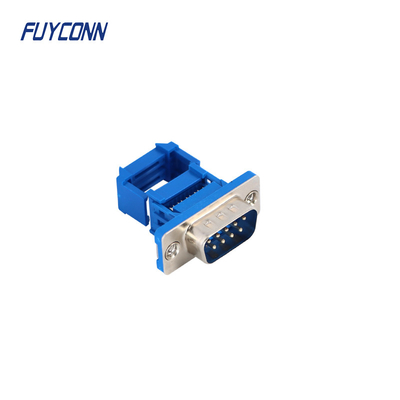

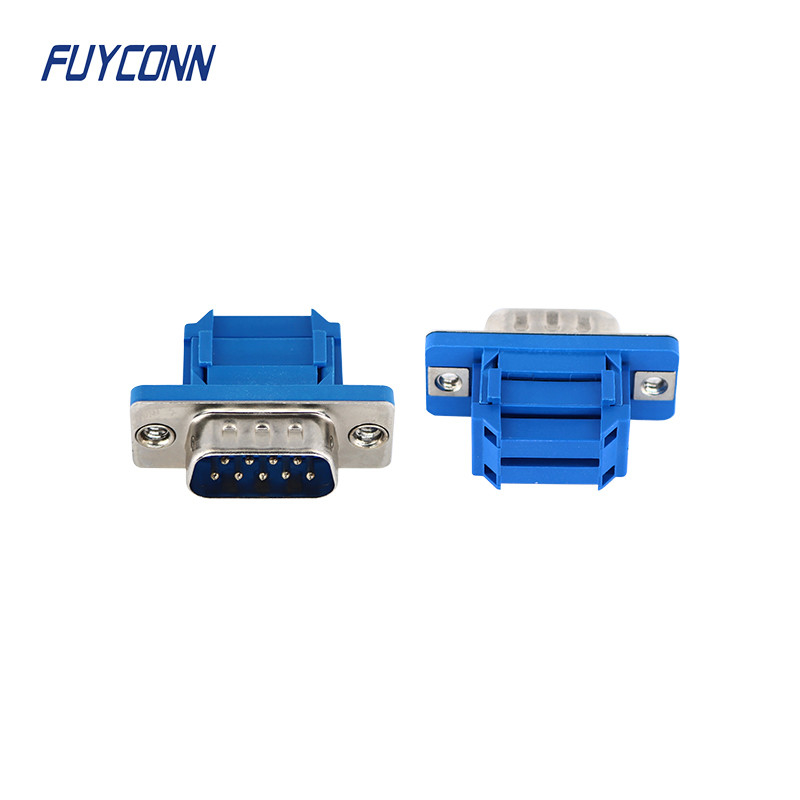

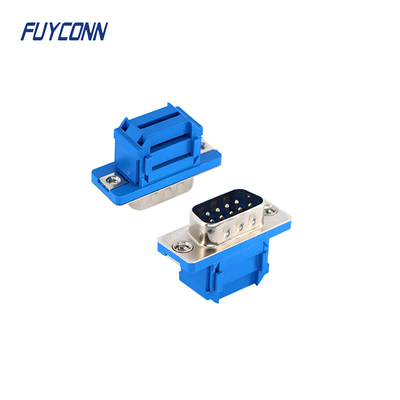

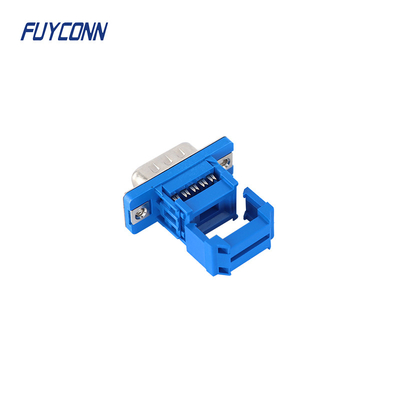

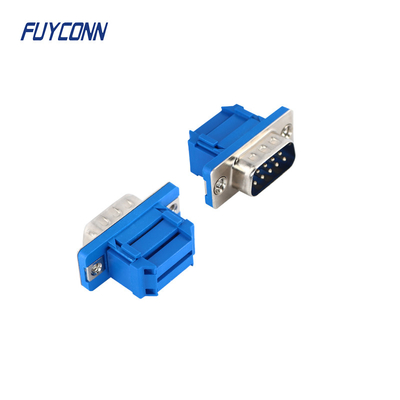

Large Image : Crimping Cable IDC Ribbon Connector , Male 9pin Ribbon D-SUB Connector

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number:	FUYDI002-9P

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T or Paypal
Supply Ability:	1 million/ month

Contact Now

Crimping Cable IDC Ribbon Connector , Male 9pin Ribbon D-SUB Connector

Description

Product Name:	D-sub Connectors	Product Line:	Ribbon Connector
Contact Type:	Crimping Type	Number Of Terminal:	9 15 25 37 Pin
Connector Style:	Receptacle	Gender:	Male
Highlight:	Crimping Cable IDC Ribbon Connector , Male IDC Ribbon Connector , 9pin Ribbon D-SUB Connector

Crimping Cable IDC Ribbon Connector, Male 9pin Ribbon D-SUB Connector

Product Overview

IDC Ribbon connector Male 9pin Ribbon D-SUB connector for Crimping Cable

D-type connectors most commonly consist of two and sometimes more parallel rows of connections. The connectors feature a D-format metal shell that provides mechanical strength and limited screening capabilities. The metal shells of the plug and socket make contact to enhance screening effectiveness.

Panel mounting connectors are secured using nuts with additional threading to prevent mating connectors from working loose
Free connectors can have backshells that provide screening and connect to cable screens, or plastic versions offer protection
Built-in strain relief for cable protection
Standard pin spacing: approximately 0.108 inch (2.74 mm) between pins with rows spaced 0.112 inch (2.84 mm) apart
Higher pin counts and densities achievable with additional rows of pins

Product Specifications

Product Category	D-SUB Connector
Type	IDC Ribbon Connector
Number of Terminal	9pin, 15Pin, 25Pin, 37pin
Rows of Contact	2 rows
Connector Style	Receptacle
Gender	Male
Insulator Color	White, Black or Blue
Insulator Material	PBT
Contact Pin Material	Brass
Shield Plating	Nickel
Application	Cable

Technology Parameters
