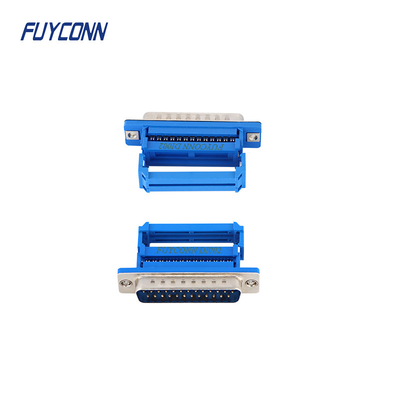

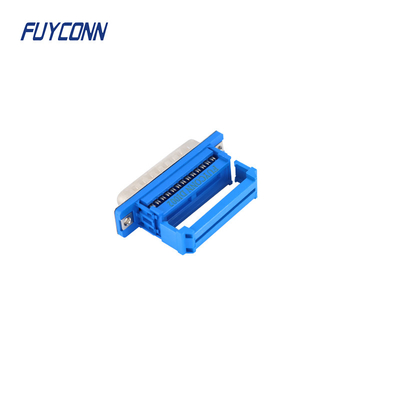

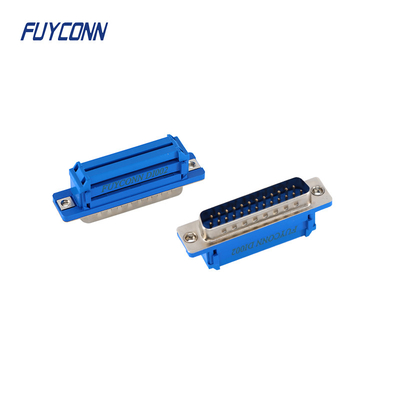

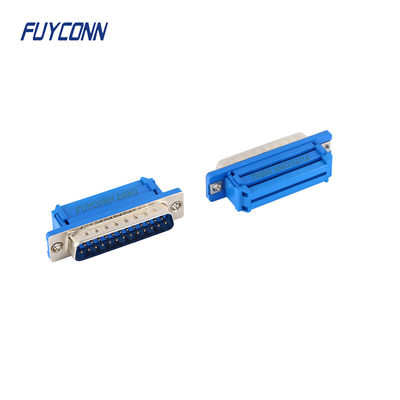

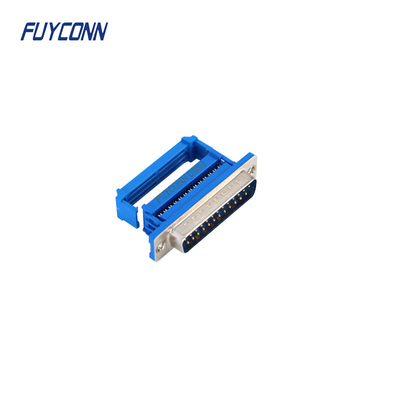

25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type

25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type
25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type
25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type 25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type 25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type 25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type 25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type 25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type

Large Image :  25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUYDI002-25P
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month

25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type

Description
Product Name: D-sub Connectors Product Line: Ribbon Connector
Contact Type: Crimping Type Number Of Terminal: 9 15 25 37 Pin
Connector Style: Receptacle Gender: Male
High Light:

25Pin IDC Ribbon Connector

,

Crimping Type IDC Ribbon Connector

,

Crimping Type D-SUB Connector

25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type



D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.

The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.



Detail Description

Product Category: D-SUB Connector
Type: IDC Ribbon Connector
Number of Terminal: 9pin 15Pin 25Pin 37pin
Rows of contact 2 rows
Connector Style: Receptacle
Gender: Male
Insulator Color: White, Black or Blue
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Application: Cable





Technology Parameters

25Pin IDC Ribbon Connector Male Ribbon D-SUB Connector Crimping Type 0
