D-SUB Ribbon Connector 37Pin Male Ribbon IDC DB Connector

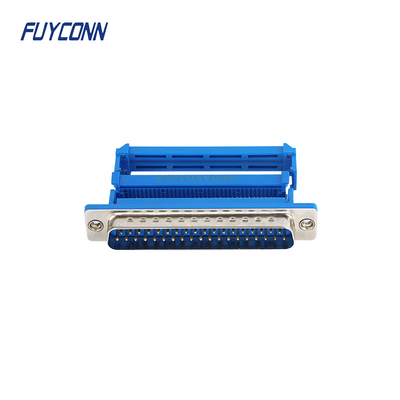

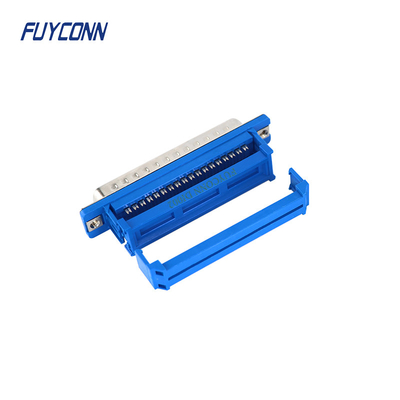

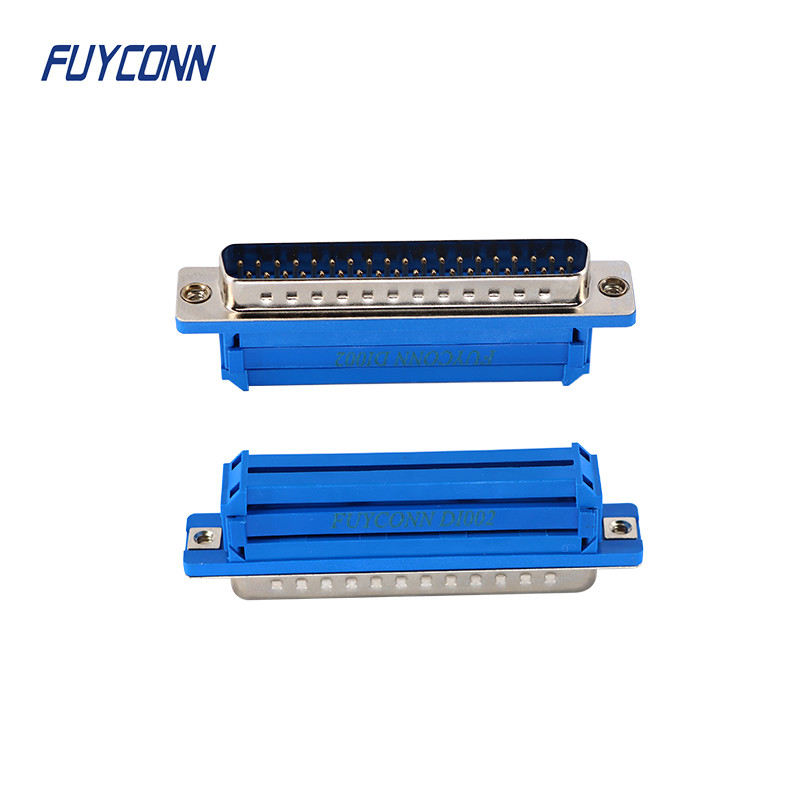

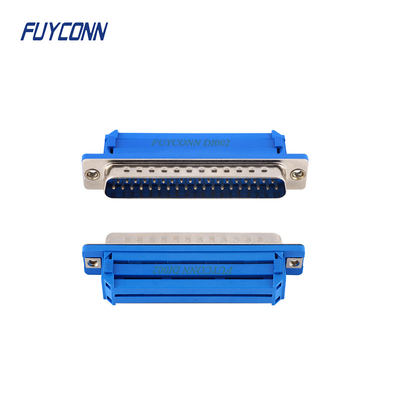

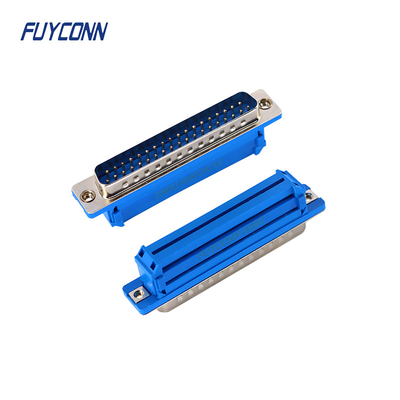

Large Image : D-SUB Ribbon Connector 37Pin Male Ribbon IDC DB Connector

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number:	FUYDI002-37P

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T or Paypal
Supply Ability:	1 million/ month

Contact Now

D-SUB Ribbon Connector 37Pin Male Ribbon IDC DB Connector

Description

Product Name:	D-sub Connectors	Product Line:	Ribbon Connector
Contact Type:	Crimping Type	Number Of Terminal:	9 15 25 37 Pin
Connector Style:	Receptacle	Gender:	Male
Highlight:	Male Ribbon IDC DB Connector , 37Pin DB Connector , UL 94-V0 D-sub Connectors

D-SUB Ribbon Connector 37Pin Male Ribbon IDC DB Connector

D-type connectors most commonly consist of two and sometimes more parallel rows of connections. The connectors feature a D-format metal shell that provides mechanical strength and limited screening capabilities. The metal shells of the plug and socket make contact to enhance screening effectiveness.

Panel mounting connectors are typically secured using nuts with additional threading that allows mating connectors to be secured together, preventing them from working loose. Free connectors can be equipped with backshells that provide screening and cable screen connection, or plastic versions that offer protection and strain relief for the cable.

For common connector types with two rows of pins (including 9, 15, 25, and 37-way configurations), pins are spaced approximately 0.108 inch (2.74 mm) apart with rows spaced 0.112 inch (2.84 mm) apart. Higher pin counts and densities can be achieved using additional rows of pins.

Product Specifications

Product Category	D-SUB Connector
Type	IDC Ribbon Connector
Number of Terminals	9pin, 15Pin, 25Pin, 37pin
Rows of Contact	2 rows
Connector Style	Receptacle
Gender	Male
Insulator Color	White, Black or Blue
Insulator Material	PBT
Contact Pin Material	Brass
Shield Plating	Nickel
Application	Cable

Technology Parameters

Tag:

Contact Person: Ms. Grace_ Zhong

Tel: (86) 18925547246

Fax: 86-0769-83690909
