1.27mm SCSI 14 Pin Mini D Ribbon Connector Male Solder Servo

Large Image : 1.27mm SCSI 14 Pin Mini D Ribbon Connector Male Solder Servo

Product Details:

Place of Origin:	Dongguan
Brand Name:	FUYCONN
Model Number:	FUYSC116-14P

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	1-2 weeks
Payment Terms:	T/T
Supply Ability:	500000pcs per Month

Contact Now

1.27mm SCSI 14 Pin Mini D Ribbon Connector Male Solder Servo

Description

Product Name:	SCSI Solder Connector	Contact Material:	Brass Gold Plated
Insulator Material:	PBT	Housing:	ABS
Termination:	Solder Terminal	Gender:	Male
Pitch:	1.27mm	No. Of Contact:	14 Pin
Type:	CN Type	Color:	Black
Highlight:	1.27mm Mini D Ribbon Connector , Servo Mini D Ribbon Connector , ABS Housing SCSI Connector

1.27mm SCSI 14 Pin Mini D Ribbon Connector Male Solder Servo

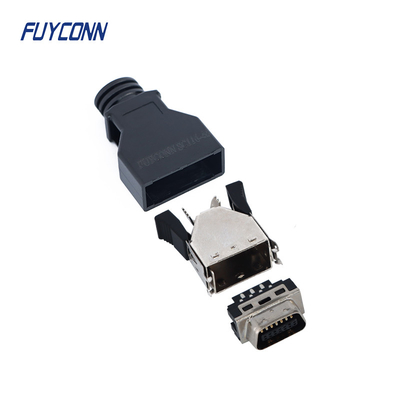

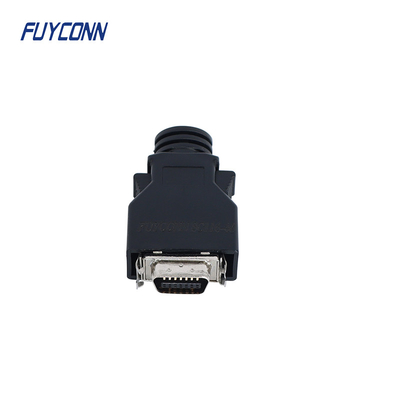

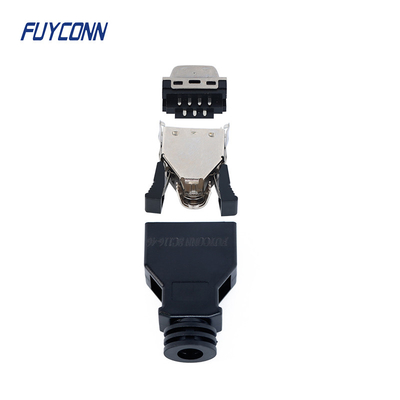

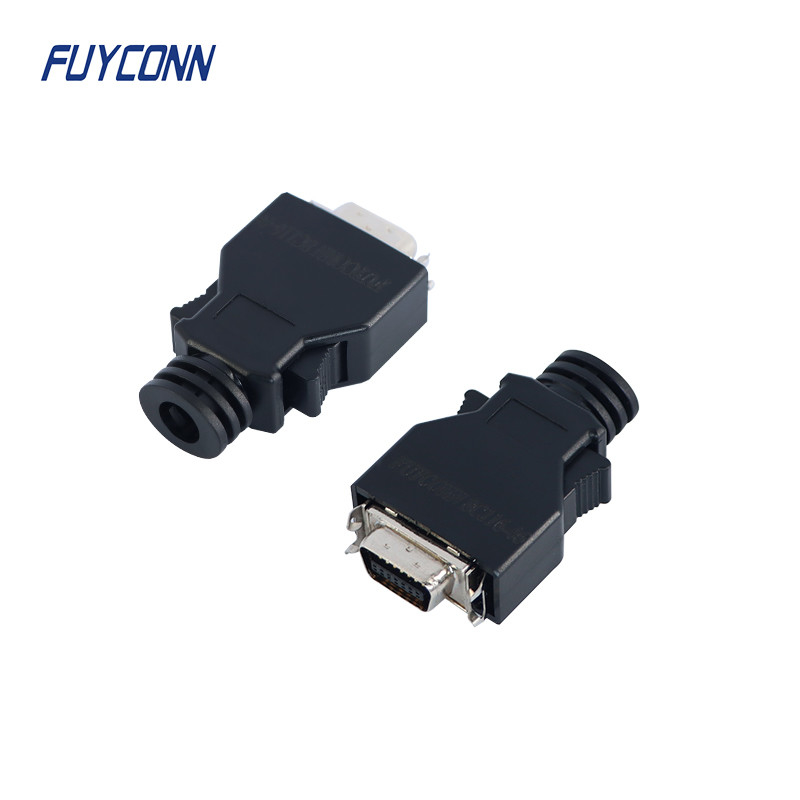

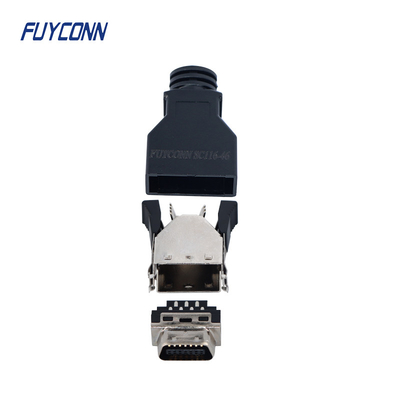

1.27mm SCSI 14 Pin Mini D Ribbon Male Solder Servo Connector, Solder Cable MDR Male 14pin SCSI Connector w/ Plastic Dust Cover

The SCSI (Small Computer System Interface) Servo Connector is a specialized interface bus designed to facilitate communication with various types of peripherals. It provides an advanced, high-speed, and cost-effective method of interconnecting computer peripherals and consumer electronic devices.

The Mini D Ribbon (MDR) SCSI Connector is available in 20-pin and 26-pin solder type versions, all featuring protective plastic covers.

Materials

Component	Material
Contact Material	Brass
Insulator	PBT
Housing Material	ABS

Product Features

Feature	Specification
Product Type	SCSI Connector
Product Line	Solder Connector
Gender	Male
Connector Style	Plug
Centerline	1.27mm
Number of Positions	14 pin
Contact Plating	Gold Flash 1U", 3U", 5U", 10U", 15U", 30U"
Insulator Color	Black
Shielded	Yes
Orientation	180 Degree Cable Exit
Type	CN

Electrical Specifications

Parameter	Specification
Current Rating	2 Amp
Voltage Rating	AC 1000V for minute
Insulator Resistance	1000 MΩ min. at DC 500V
Contact Resistance	30mΩ max. at DC 100mA
Operation Temperature	-55°C to +105°C

Technology Parameters
