Product Details:
|
| Product Name: | SCSI Solder Connector | Contact Material: | Brass Gold Plated |
|---|---|---|---|
| Insulator Material: | PBT | Housing: | ABS |
| Termination: | Solder Terminal | Gender: | Male |
| Pitch: | 1.27mm | No. Of Contact: | 50 Pin |
| Type: | CN Type | Color: | Black |
| High Light: | MDR Male SCSI Cable Connector,50pin SCSI Cable Connector,Straight Plastic Cover SCSI Connector |
||

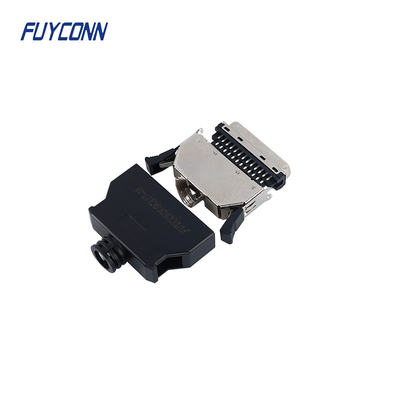

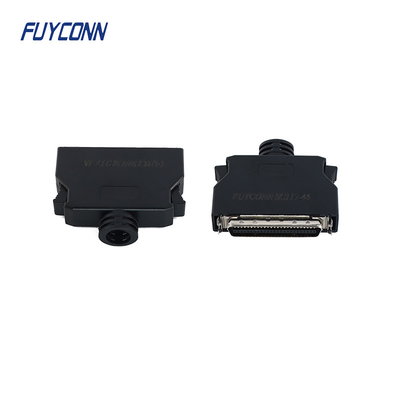

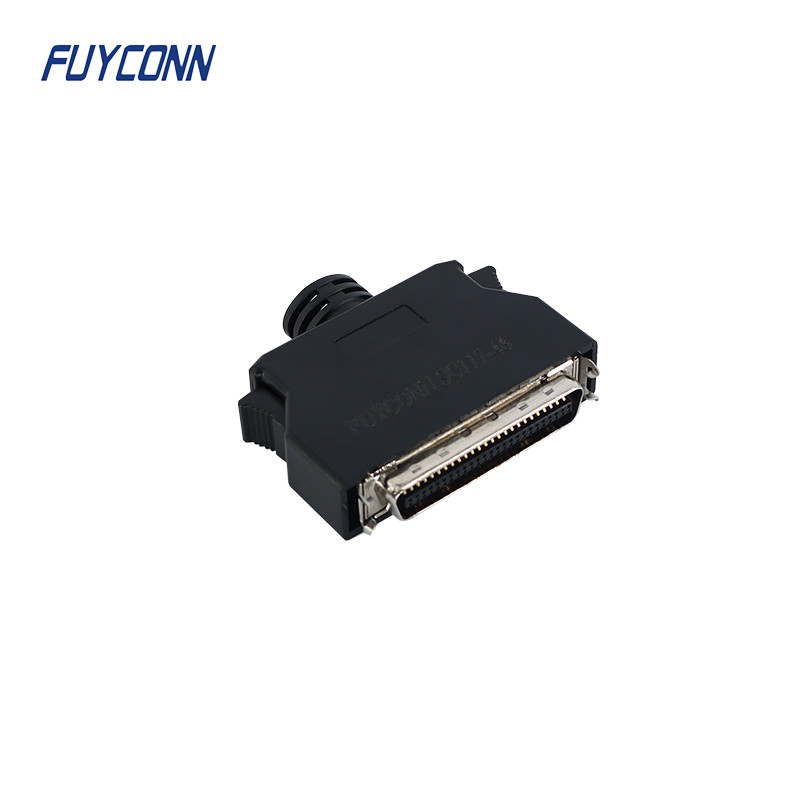

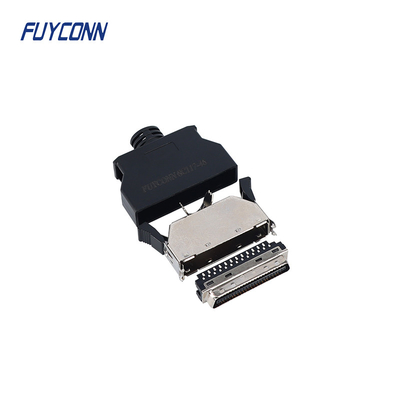

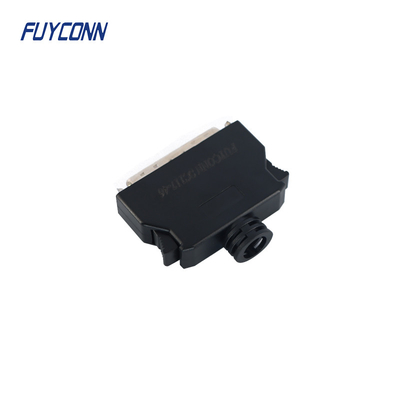

50pin Solder MDR Male SCSI Cable Connector, SCSI 50 Pin Mini D Ribbon Male Solder Servo Connector w/ Plastic Dust Cover
SCSI (Small Computer System Interface) Servo Connector, is a kind of more special interface bus, equipped with a variety of types of peripherals to communicate. Advanced High Speed A versatile, high-speed, and low-cost method of interconnecting a varietyof computer peripherals and consume electronic devices.
Materials
| Contact Material: | Brass |
| Insulator: | PBT |
| Housing Material: | ABS |
Product Features
| Product Type: | SCSI Connector |
| Product Line: | Solder Connector |
| Gender: | Male |
| Connector Style: | Plug |
| Certerline : | 1.27mm |
| Number of Position: | 50 pin |
| Contact Plating: | Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U" |
| Insulator Color: | Black |
| Shielded: | Yes |
| Orientation: | 180 Degree Cable Exit |
| Type | CN |
Electrical Specifications
| Current Rating: | 2Amp |
| Voltage rating: | AC 1000v for minute |
| Insulator Resistance: | 1000 MΩ min.at DC500V |
| Contact Resistance: | 30mΩ max. at DC 100MA |
| 4. Operation Temperature: | -55°C to +105°C |
Technology Parameters
