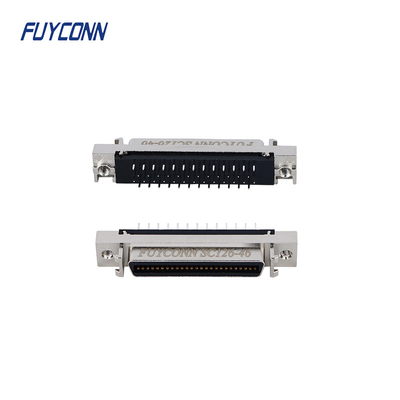

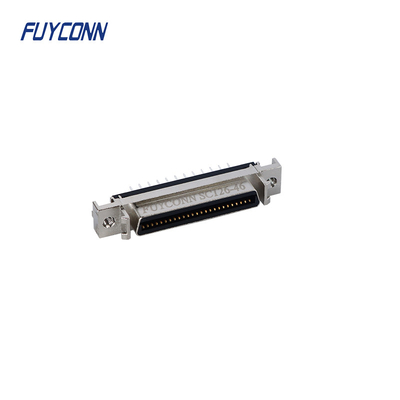

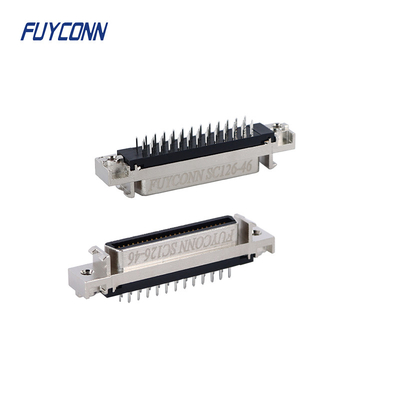

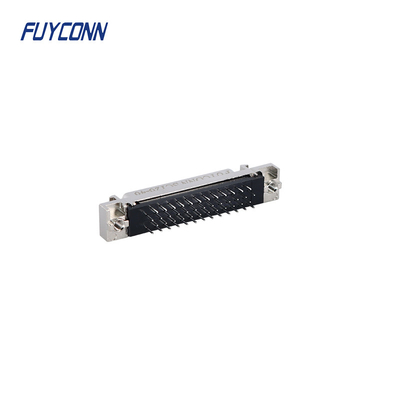

SCSI 50pin Servo Connector MDR PCB Straight 1.27mm With Zinc Alloy Shell

SCSI 50pin Servo Connector MDR PCB Straight 1.27mm With Zinc Alloy Shell
SCSI 50pin Servo Connector MDR PCB Straight 1.27mm With Zinc Alloy Shell
SCSI 50pin Servo Connector MDR PCB Straight 1.27mm With Zinc Alloy Shell SCSI 50pin Servo Connector MDR PCB Straight 1.27mm With Zinc Alloy Shell SCSI 50pin Servo Connector MDR PCB Straight 1.27mm With Zinc Alloy Shell SCSI 50pin Servo Connector MDR PCB Straight 1.27mm With Zinc Alloy Shell SCSI 50pin Servo Connector MDR PCB Straight 1.27mm With Zinc Alloy Shell

Large Image :  SCSI 50pin Servo Connector MDR PCB Straight 1.27mm With Zinc Alloy Shell

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Model Number: FUYSC126 (50P)
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD0.5-USD2/pc
Packaging Details: Vacuum Tray + Carton
Delivery Time: 5-8 works day
Payment Terms: T/T,Paypal
Supply Ability: 100000/ week
Contact Now

SCSI 50pin Servo Connector MDR PCB Straight 1.27mm With Zinc Alloy Shell

Description
Product Name: SCSI PCB Connector Gender: Female
Connector Type: CN Type Conatct Material: Phosphorous Bronze
Insulation Material: PBT Insulation Color: Black
PCB Mount: Straight No. Of Contacts: 50pin
Contact Plating: Gold Plating (1u",3u",5u",10u",15u") Pitch: 1.27mm
Shell: Zinc Alloy
Highlight:

50pin Servo Connector

,

1.27mm Servo Connector

,

Phosphorous Bronze SCSI Connector

SCSI 50pin Servo Connector MDR PCB Straight 1.27mm With Zinc Alloy Shell
Product Overview

SCSI Female 50pin Servo Connector, Mini D Ribbon MDR PCB Straight 1.27mm SCSI Connector with Zinc Alloy Shell

Product Catalog: SCSI CONNECTOR.pdf

SCSI (Small Computer System Interface) is a specialized interface bus designed for communication with various types of peripherals. It provides an advanced, high-speed, versatile, and cost-effective method of interconnecting computer peripherals and consumer electronic devices.

SCSI Connectors are available in 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, and 100pin configurations, with both PCB and IDC crimping type versions. The internal 100 pin SCSI connector features 100 pins arranged in two rows, with 50 pins in the top row and 50 pins in the lower row.

SCSI 50pin Servo Connector technical diagram
Technical Specifications
Type SCSI Connector
Application Servo
Gender Female
Orientation Right Angle
Insulator Material PBT
Contact Current Rating 1A AC/DC
Contact Resistance Max 35m ohm
No. of Pins 50pin
Electrical Characteristics
Parameter Specification
Current Rating 1A
Withstanding Voltage 500V for one minute
Insulation Resistance 500MΩ min (at DC500V)
Contact Resistance 35mΩ Max
Operating Temperature -55°C to +105°C
Product Features
Feature Specification
No. of Pins 50 pin
Shell Steel, Nickel Plated
Housing PBT
Contacts Phosphor bronze
Gold Plating Options 1U", 3U", 5U", 10U", 15U", 30U"

Tag:

scsi 20 pin connector,

26 pin scsi connector,

50 pin scsi connector
