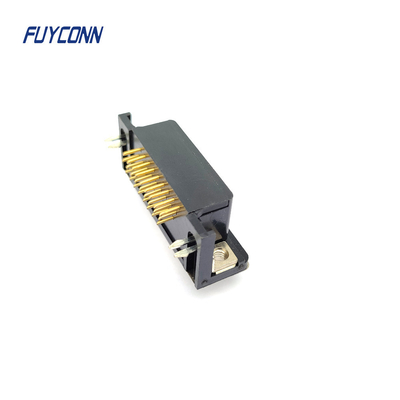

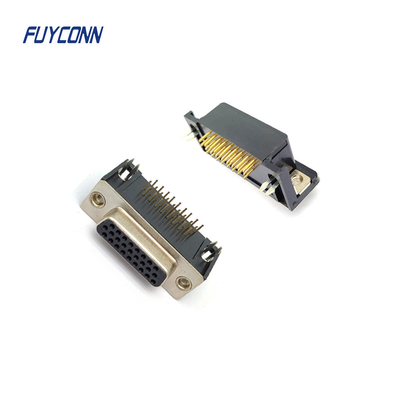

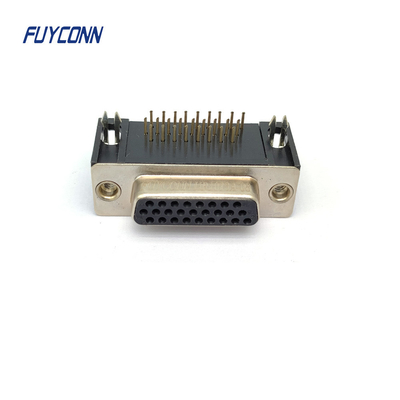

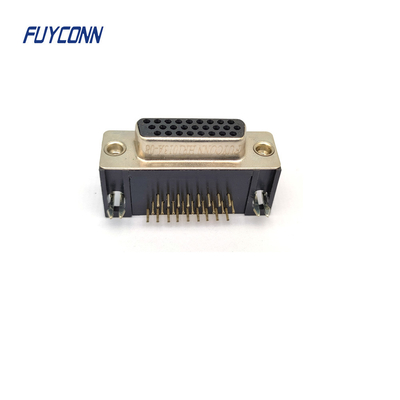

Large Image :  PCB High Density D-SUB Connector , 15pin 26pin 44pin 62Pin DSUB Connector

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUYHR1031A
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month

PCB High Density D-SUB Connector , 15pin 26pin 44pin 62Pin DSUB Connector

Description
Product Name: D-sub Connectors Product Line: High Desity
Type: Right Angle PCB Connector Number Of Terminal: 15 26 44 62 Pin
Distance From Terminal To Shell: 8.89mm Gender: Female
Mounting: Rivet Type Color: Black
Material: PBT
High Light:

Rivet Type D-SUB Connector

,

8.89mm D-SUB Connector

,

26pin DSUB Connector

15/26/44/62 Pin R/A PCB HD D-SUB Connector, Right Angle PCB 15pin 26pin 44pin 62Pin Female High Density D-SUB Connector

D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
Product Feature

1. Product Name:
D-SUB Connector
2. Product Line:
PCB High Density Connector
3. No. of pin
15pin 26pin 44pin 62pin
4. Material:
PBT
5.Contact Type
Right Angle
6. Gender
Female


Data Sheet

PCB High Density D-SUB Connector , 15pin 26pin 44pin 62Pin DSUB Connector 0
