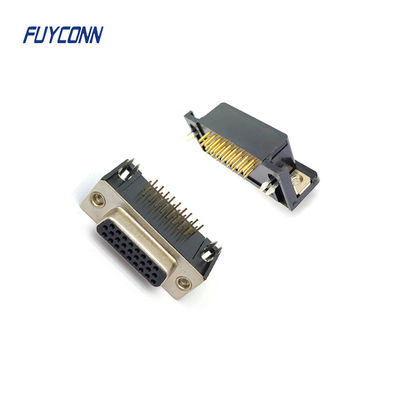

PCB High Density D-SUB Connector Female, 15pin 26pin 44pin 62Pin DSUB Connector

Right Angle PCB 15pin 26pin 44pin 62Pin Female High Density D-SUB Connector

D-type connectors most commonly consist of two and sometimes more parallel rows of connections. The connectors feature a D-format metal shell that provides mechanical strength and limited screening capabilities. The metal shells of the plug and socket make contact to enhance screening effectiveness.

Panel mounting connectors are typically secured to the panel using nuts with additional threads that allow the mating connector to be secured, preventing loosening. Free connectors can have backshells that provide screening and cable screen connection, or plastic backshells that offer protection and strain relief for the cable.

The pins in common connector types with two rows of pins (9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities are achieved using additional rows of pins.
