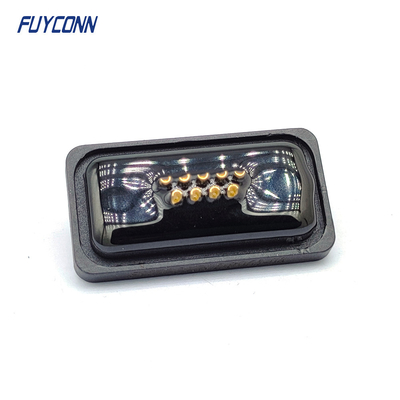

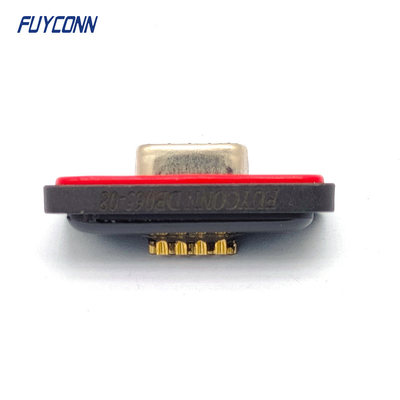

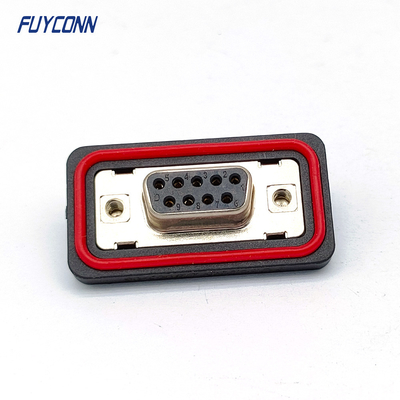

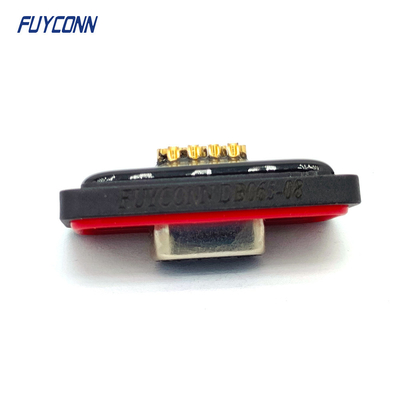

Waterproof D-SUB Connectors , 9P 15P 25P 37P Solder Female DB Connector

9P 15P 25P 37P Solder Female Waterproof D-SUB DB connector, 9pin 15pin 25pin 37pin Female Solder Cup D-SUB Waterproof Connector

D-type connectors most commonly consist of two and sometimes more parallel rows of connections. The connectors have a D-format metal shell that provides mechanical strength and limited screening - the metal shells of the plug and socket make contact to provide screening. Panel mounting connectors are typically secured to the panel using nuts that have an additional thread allowing the mating connector to be secured to prevent loosening. Free connectors can have backshells that provide screening and can be connected to the cable screen, or if plastic, provide protection. Strain relief on the cable is also provided.

The pins in the more common connector types with two rows of pins (9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
