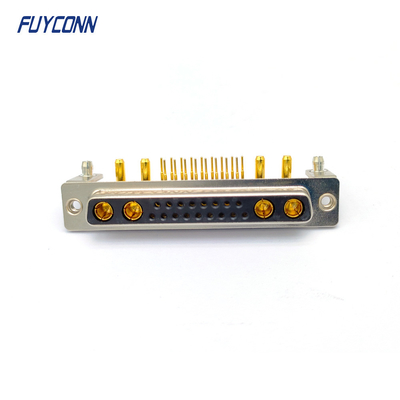

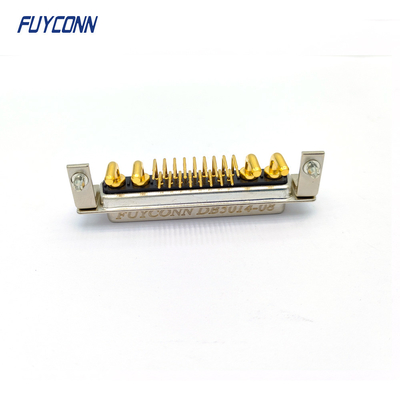

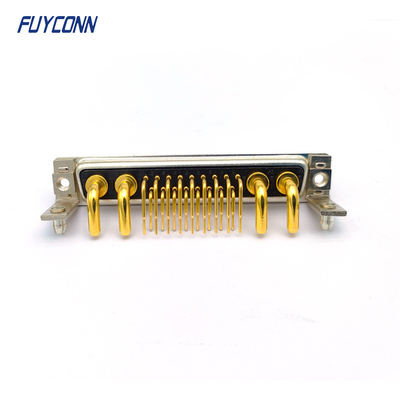

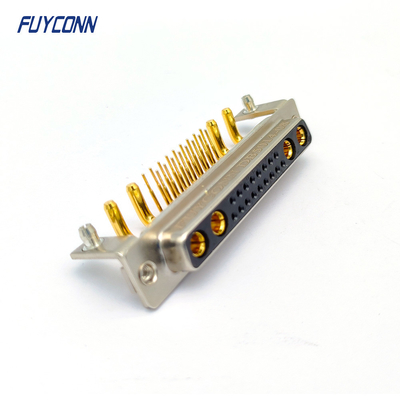

21W4 Power PCB Type Right Angle PCB D-Sub Connectors 21 Way

D-type connectors most commonly consist of two and sometimes more parallel rows of connections. The connectors feature a D-format metal shell that provides mechanical strength and limited electromagnetic screening. The metal shells of the plug and socket make contact to enhance screening effectiveness.

Panel mounting connectors are typically secured to the panel using nuts with additional threading that allows the mating connector to be secured, preventing loosening. Free connectors can be equipped with backshells that provide screening and connect to cable screens, or plastic backshells that offer protection and strain relief for cables.

The pins in common connector types with two rows (such as 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with rows spaced 0.112 inch (2.84 mm) apart. Higher pin counts and densities can be achieved using additional rows of pins.
