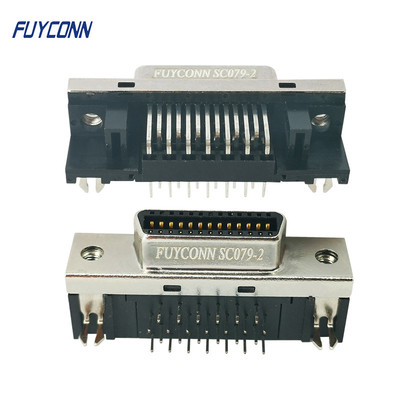

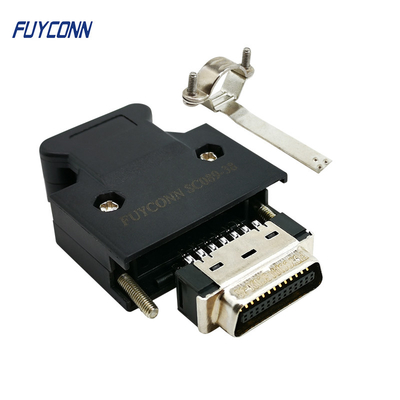

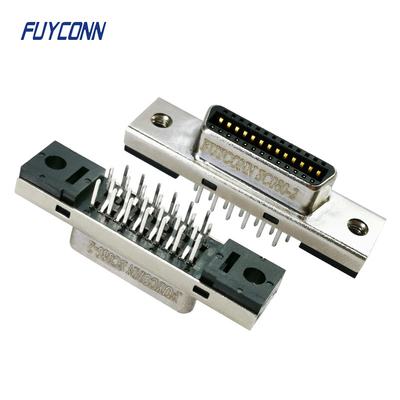

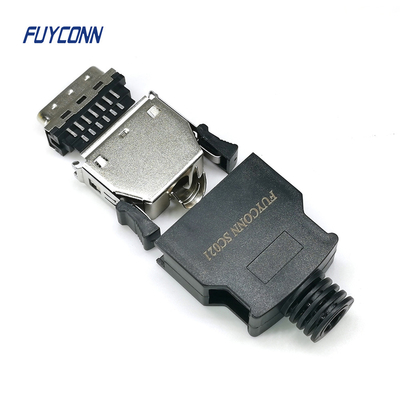

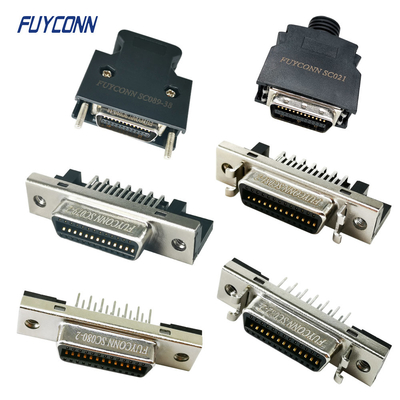

26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector

26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector
26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector
26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector 26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector 26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector 26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector 26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector 26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector

Large Image :  26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Model Number: 26P SCSI Connector
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD0.2-USD2/pc
Packaging Details: Vacuum Tray + Carton
Delivery Time: 5-8 works day
Payment Terms: T/T,Paypal
Supply Ability: 100000/ week
Contact Now

26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector

Description
Connector Type: CN Type No.of Contact: 26 Pin
Contact Material: Brass Gold Plating Insulation Material: PBT
Insulation Color: Black Pitch: 1.27mm
Highlight:

26pin SCSI MDR Connector

,

Brass Gold Plating SCSI CN Connector

,

1.27mm SCSI CN Connector

26pin MDR Connector Female / Male 1.27mm Brass Gold Plating SCSI Connector
Product Overview

26pin SCSI Connector PCB Solder Cup IDC Crimping Female Male 1.27mm Connector

Download Product Catalog (PDF)

SCSI (Small Computer System Interface) is a specialized interface bus designed for communication with various types of peripherals. It provides an advanced, high-speed, versatile, and cost-effective method of interconnecting computer peripherals and consumer electronic devices.

SCSI connectors are available in 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, and 100pin configurations, with both PCB and IDC crimping type versions. The internal 100 pin SCSI connector features 26 pins arranged in two rows with 13 pins in the top row and 13 pins in the lower row.

Product Features
Specification Details
Number of Pins 26pin
Shell Material Steel, Nickel Plated
Housing Material PBT
Contacts Material Phosphor Bronze
Gold Plating Options 1U", 3U", 5U", 10U", 15U", 30U"
Electrical Characteristics
Characteristic Specification
Current Rating 1 AMP
Withstanding Voltage 500V for one minute
Insulation Resistance 500MΩ min (at DC500V)
Contact Resistance 35MΩ Max
Operating Temperature -55°C to +105°C
