Product Details:
|
| Product Category: | DIN41612 Connector | Product Line: | Power Connector |
|---|---|---|---|
| Number Of Terminal: | 3*16P 48pin | Number Of Rows: | 3 Rows |
| Terminals Type: | Right Angle | Connector Type: | PCB Type |
| Insulator Color & Material: | Grey & PBT | Contact Pin Material: | Phosphor Bronze |
| Contact Plating: | Gold Plating(1u",3u",5u",10u",15u") | Pitch: | 5.08mm |
| Gender: | Male | ||
| High Light: | 5.08mm Power DIN 41612 Connector,PCB Angled Male DIN 41612 Connector,48Pin DIN41612 Connector |
||

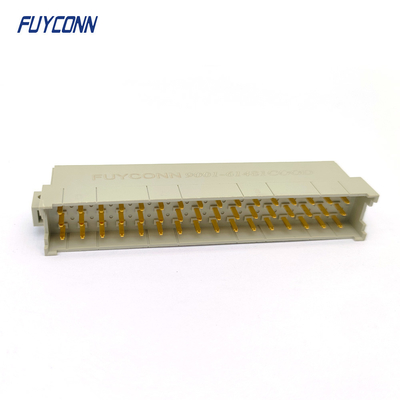

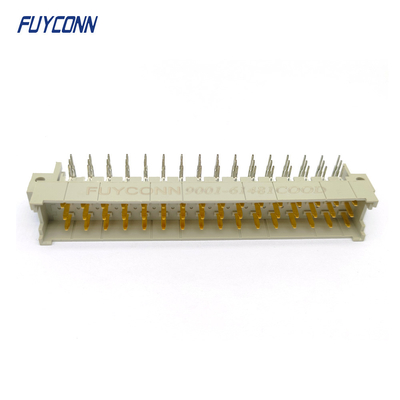

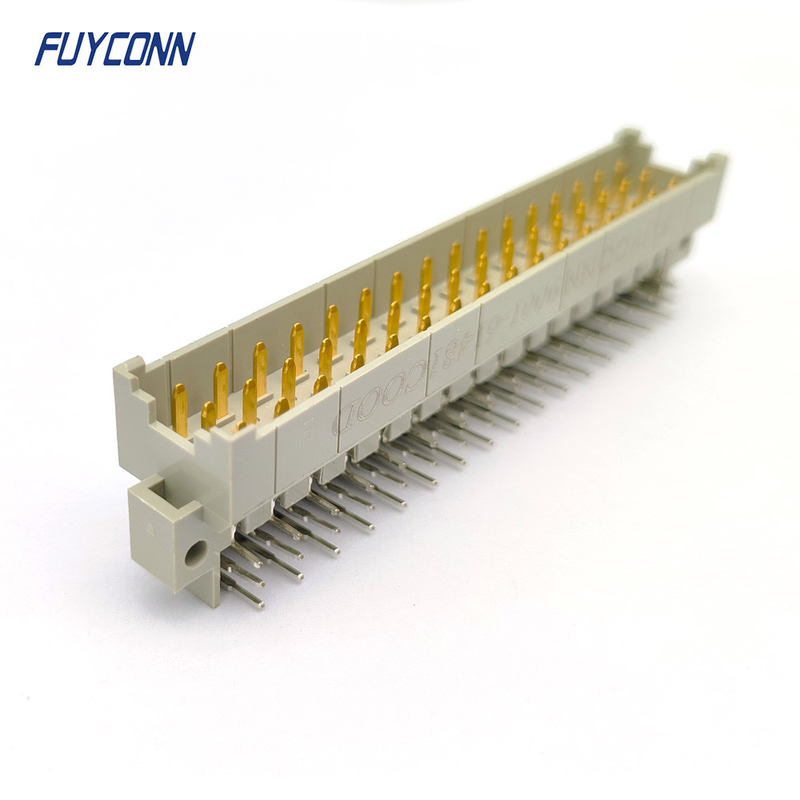

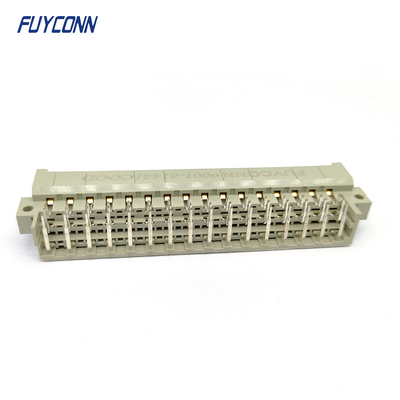

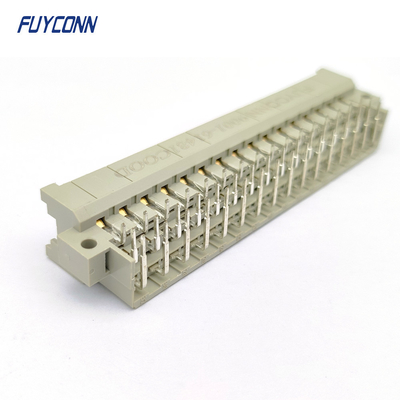

90 degree R/A 3 rows 48P DIN41612 Connector, PCB Right Angle Male 3*16P 48Pin 5.08mm 3rows Power Type DIN 41612 Connector
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VME bus system.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.
| Product features: | |
| 1. Product Line: | DIN41612 Connector |
| 2. Product Name: | Power DIN 41612 Connector |
| 3. Connector Type | Power Connector |
| 4. Connector Gender: | Male |
| 5. Number of Position: | 3*16 148pin |
| 6.Number of rows: | 3 rows |
| 7. Contact Material: | Brass |
| 8. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
| 9. Insulation Material: | PBT |
| 10.Color | Gray |
| 11. Terminal Type | Right Angle |
| 12. Pitch | 5.08mm |
| Electrical Specifications | |
| 1. Current Rating: | 5.6Amp |
| 2. Voltage rating: | DC 1000v per minute |
| 3. Insulator Resistance: | 1000Mn MIN.(at 500V DC) |
| 4. Operation Temperature: | -55°C to +105°C |
Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
