Product Details:
|
| Connector Line: | Centronic Connector | Connector Type: | Convertor Connector |
|---|---|---|---|
| Pin No.: | 50 Pin | Gender: | Female To Female |
| Pitch: | 2.16mm | ||
| High Light: | 50pin RJ21 Gender Charger Adapter,25 pair RJ21 Gender Charger Adapter,RJ21 Female To Female Convertor |
||

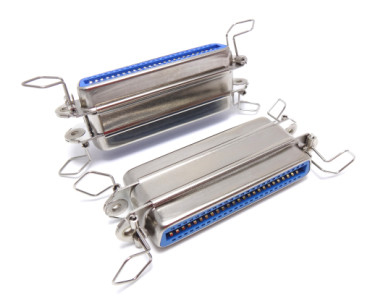

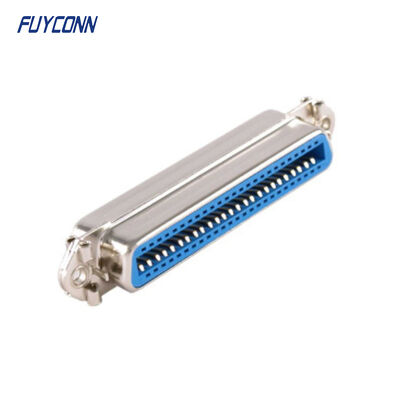

50pin 25 pair RJ21 Gender Charger Adapter Female to Female convertor
Advantage
1, ROHS compliant
2, High quality, Competitive price
3, Quick delivery time
4, Free sample available in 2 days

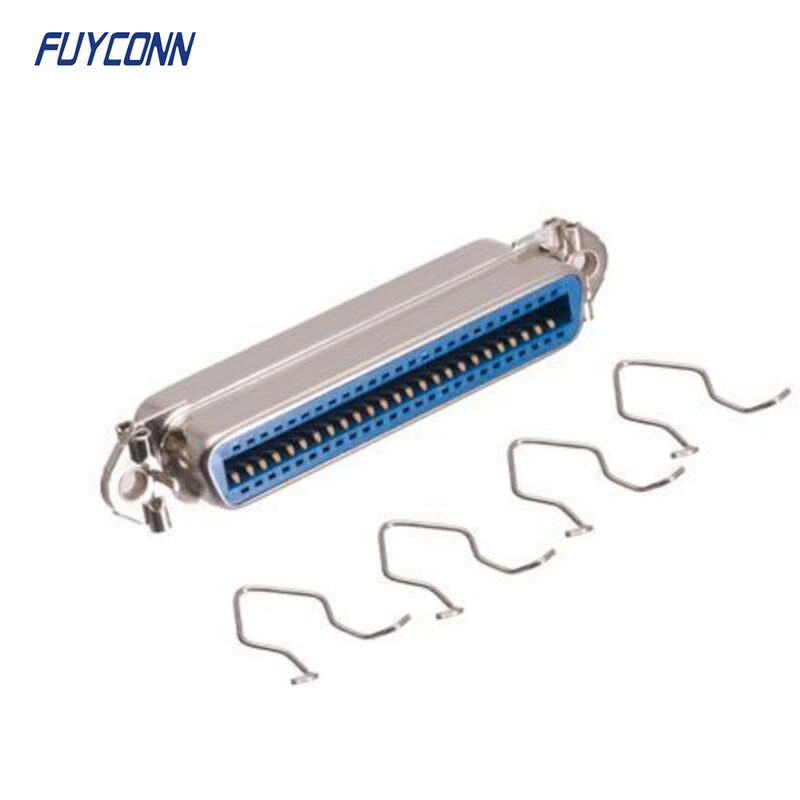

The Centronics 50-pin connector is arranged in two rows of pins, each with 25 contacts. The connector is held in place by bail locks. The 36-pin connector is often used for parallel applications, especially for printers. It is also referred to as an IEEE-1284 Type B connector.
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black and blue in color.
Common Features
|
Designed for Cable-to-cable and cable-to-PC Board applications |
|
|
Board Application |
|
|
Available in Plug & Socket styles |
|
|
Terminal Option with various types |
|
|
Connector and hood sold as complete assembly |
|
|
Available in low profile hood style |
|
|
Metal shell provides grounding and shielding capability |
|
|
Mates with industry compatible connector |
Materials
|
Contact Material: |
Phosphor Bronze |
|
Insulator: |
PBT (UL 94-V0) |
|
Shell |
Nickel Plated Steel |
Electrical Character
|
Current Rating: |
5Amp |
|
Withstanding Voltage: |
AC 1000v r.m.s |
|
Insulation Resistance: |
1000 Megohms Minimum at DC 500V |
|
Contact Resistance: |
25M∩ Max Mated |
|
Operation Temperature: |
-55°C to +105°C |
Application
|
1, VDSL Teleccom Equipment |
|
|
2, Computer Peripherals |
|
|
3, Communication Equipment |
|
|
4, PCB Board |
|
|
5, Cable to Panel |
|
|
6, Cable to cable |
|
|
7, Computer terminal |
|
|
8, Telemetering |
|
|
9, Test Equipment |
|
|
10, Printer |
