57-60 DDK Connector Solder Cup 5760140 5760240 5760360 5760500 Female DDK Connector

DDK 57-60 Connector Solder Cup 5760140 5760240 5760360 5760500 DDK Connector

Catalog: CENTRONIC CONNECTOR.pdf

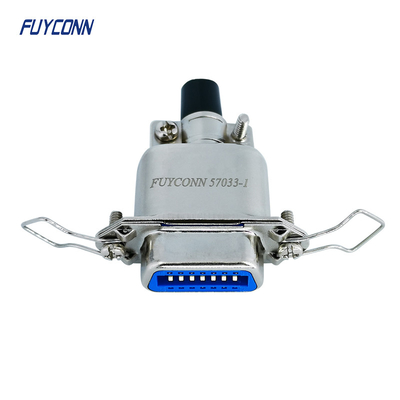

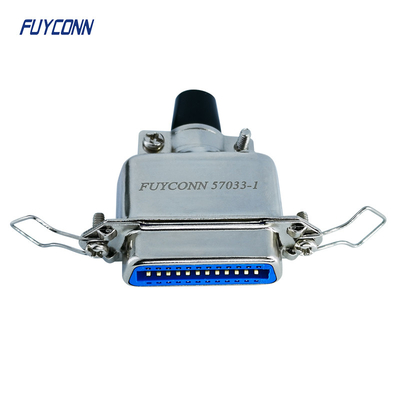

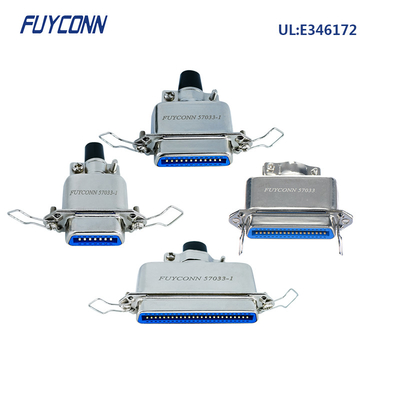

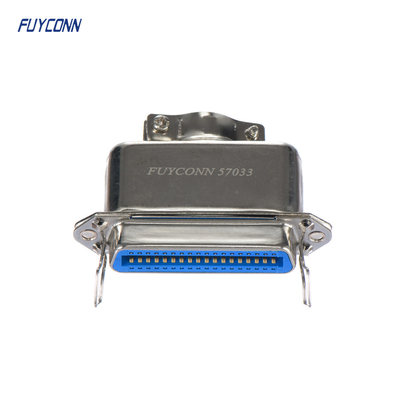

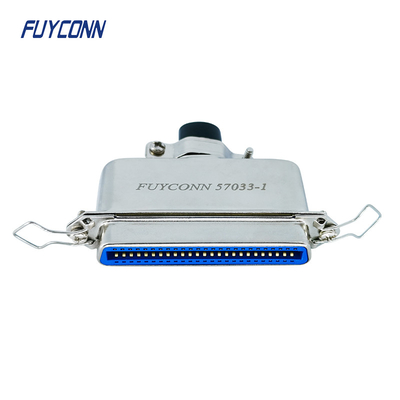

57-60 Connector 57 Series Female Solder Cup Centronics with Top Entry Metal Hood

DDK 57-60 Cable Plug Top Cable Entry Solder Centronics Connector

180° Metal Hood Solder 14, 24, 36, 50 pin Female Centronix Connector Solder Cup type

• Designed for Cable-to-cable and cable-to-PC Board applications
• Board Application
• Terminal Option with various types
• Connector and hood sold as complete assembly
• Available in low profile hood style
• Metal shell provides grounding and shielding capability
• Mates with industry compatible connector

The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.

Power Dynamics shielded and unshielded Centronic connectors offer low cost cable-to-board and board-to-board connections. They are available in 14, 24, 36, and 50 contacts. Termination types include P.C.B., solder cup, and I.D.C. They can be used in a wide variety of computer and data interface applications. All PDI Centronic connectors carry UL safety approvals.

• VDSL Telecom Equipment
• Computer Peripherals
• Communication Equipment
• RJ21 Cable
• Cable to Panel
• Cable to cable
• Computer terminal
• Telemetering
• Test Equipment
• Printer
