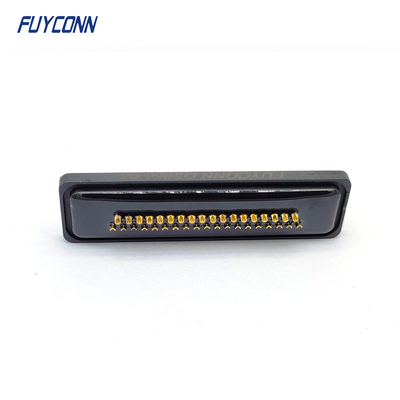

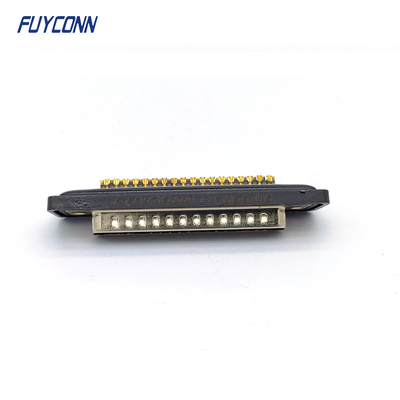

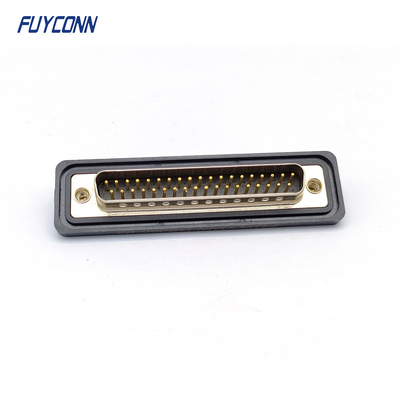

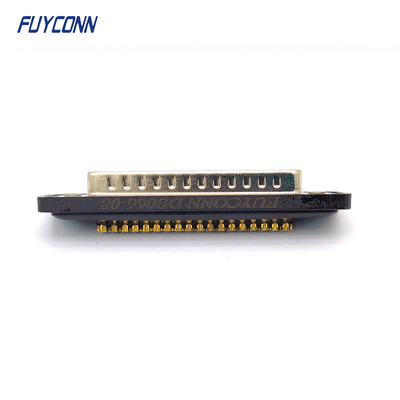

Solder Male D-SUB Waterproof Connector , 9 15 25 37 Pin D-SUB Connector

Solder Male D-SUB Waterproof Connector , 9 15 25 37 Pin D-SUB Connector
Solder Male D-SUB Waterproof Connector , 9 15 25 37 Pin D-SUB Connector
Solder Male D-SUB Waterproof Connector , 9 15 25 37 Pin D-SUB Connector Solder Male D-SUB Waterproof Connector , 9 15 25 37 Pin D-SUB Connector Solder Male D-SUB Waterproof Connector , 9 15 25 37 Pin D-SUB Connector Solder Male D-SUB Waterproof Connector , 9 15 25 37 Pin D-SUB Connector Solder Male D-SUB Waterproof Connector , 9 15 25 37 Pin D-SUB Connector

Large Image :  Solder Male D-SUB Waterproof Connector , 9 15 25 37 Pin D-SUB Connector

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUYDB1066
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month
Contact Now

Solder Male D-SUB Waterproof Connector , 9 15 25 37 Pin D-SUB Connector

Description
Product Name: D-sub Connectors Product Line: Waterproof Connector
Terminal Type: Solder Cup Connector Number Of Terminal: 9/15/25/37 Pin
Connector Style: Plug Gender: Male
High Light:

25 Pin D-SUB Waterproof Connector

,

Solder Male D-SUB Waterproof Connector

,

37 Pin D-SUB Connector

Solder Male 9 15 25 37 Pin D-SUB Waterproof Connector, 9pin 15pin 25pin 37pin Male Solder Cup Waterproof D-SUB DB connector

D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
Product Feature

1. Product Name:
D-SUB Connector
2. Product Line:
Waterproof Connector
3. No. of pin
9pin 15pin 25pin 37pin
4. Material:
PBT
5.Contact Type
Solder Cup
6. Gender
Male

Data Sheet

Solder Male D-SUB Waterproof Connector , 9 15 25 37 Pin D-SUB Connector 0

Tag:

90 degree connector,

9 pin d sub connector,

15 pin sub d connector
