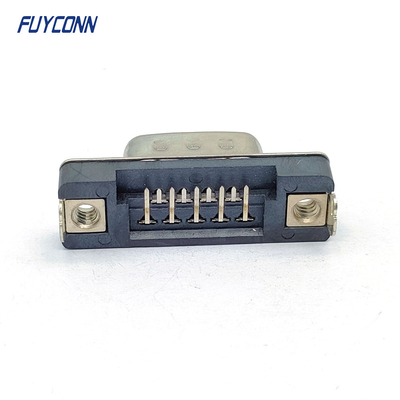

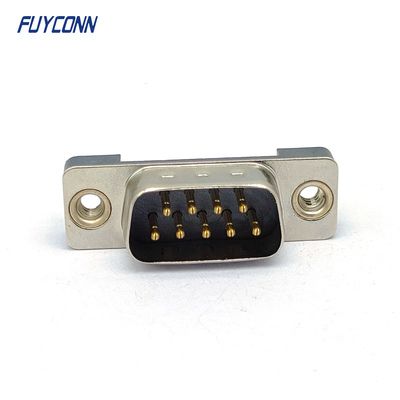

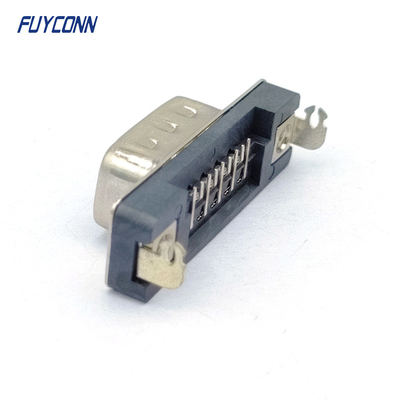

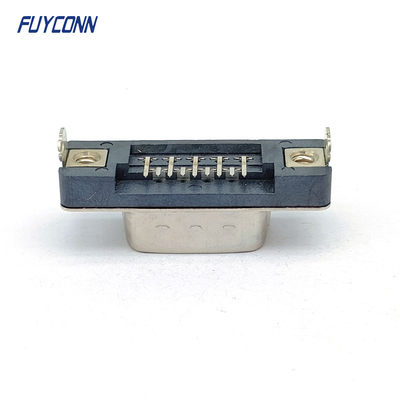

1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector

Certification
China Dongguan Fuyconn Electronics Co,.LTD certification
China Dongguan Fuyconn Electronics Co,.LTD certification
I'm Online Chat Now

1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector

1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector
1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector
1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector 1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector 1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector 1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector 1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector

Large Image :  1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUYSLIM4002
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month

1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector

Description
Product Name: D-sub Connectors Product Line: SLIM Connector
Terminal Type: Right Angle Connector Product Type: 0.9mm Lower Profile
Connector Type: VGA Gender: Male
Number Of Terminal: 9pin
High Light:

1.5mm Low Profile D-SUB Connector

,

Male SLIM D-SUB Connector

,

9Pin VGA D-SUB Connector

1.5mm Low-Profit D-SUB Connector PCB DIP Right Angle 9Pin VGA Connector, 9 pin Male SLIM Connector

D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
Product Feature

1. Product Name:
D-SUB Connector
2. Product Line:
SLIM Connector
3. No. of pin
9pin
4. Material:
PBT
5.Contact Type
Right Angle
6. Gender
Male

Data Sheet

1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector 0
