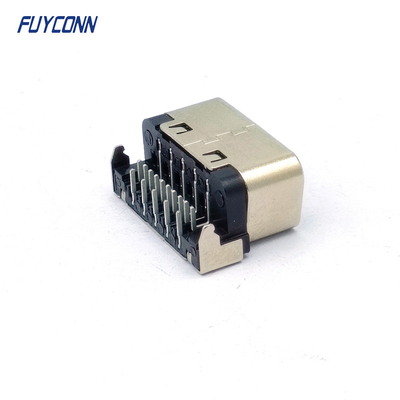

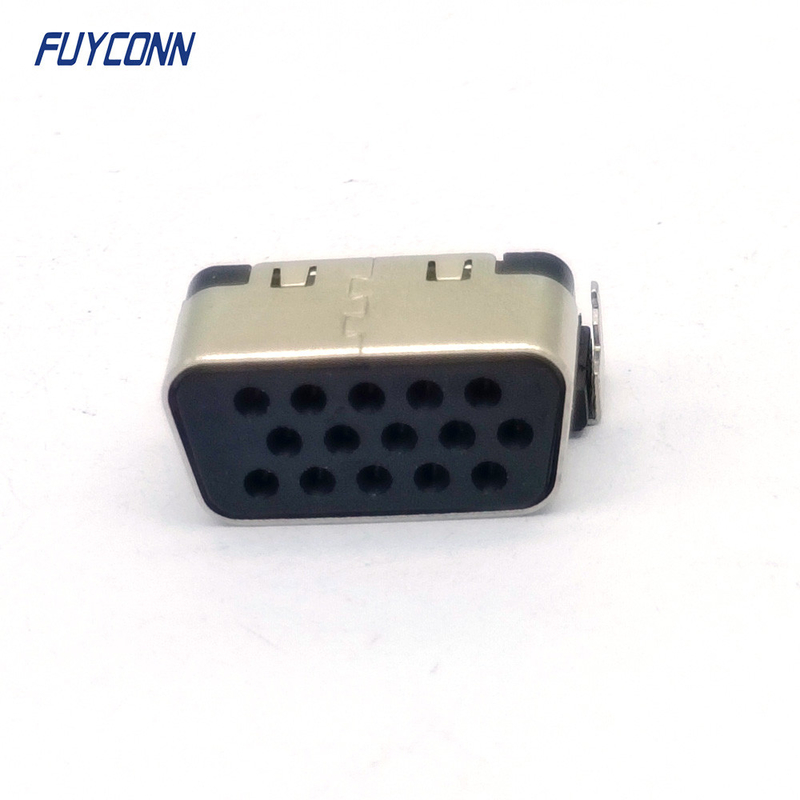

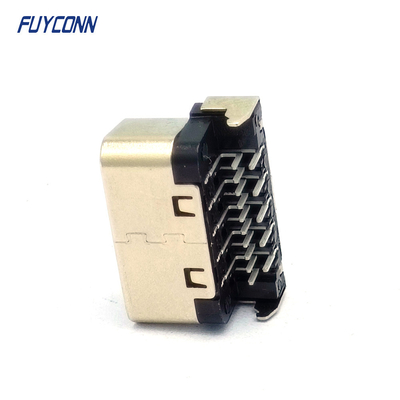

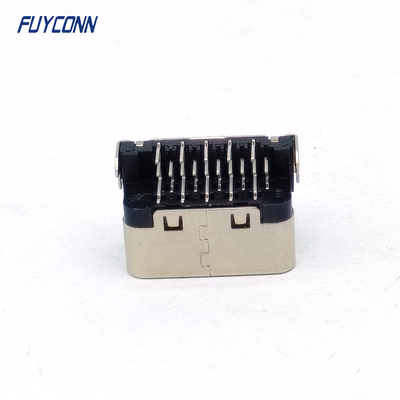

VGA D-SUB Connector 15pin Female 0.9mm Lower Profile

Large Image : VGA D-SUB Connector 15pin Female 0.9mm Lower Profile

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number:	FUYSLIM4004

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T or Paypal
Supply Ability:	1 million/ month

Contact Now

VGA D-SUB Connector 15pin Female 0.9mm Lower Profile

Description

Product Name:	D-sub Connectors	Product Line:	SLIM Connector
Terminal Type:	Right Angle Connector	Product Type:	0.9mm Lower Profile
Connector Type:	VGA	Gender:	Female
Number Of Terminal:	15pin
Highlight:	VGA D-SUB Connector , 0.9mm D-SUB Connector , D-SUB Connector 15pin

0.9mm Low-Profit 15pin D-SUB Connector Female DIP Type Right Angle PCB VGA Connector, 15P Female SLIM Connector

D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.

The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.

Product Feature
1. Product Name:	D-SUB Connector
2. Product Line:	SLIM Connector
3. No. of pin	15pin
4. Material:	PBT
5.Contact Type	Right Angle
6. Gender	Female

Data Sheet

VGA D-SUB Connector 15pin Female 0.9mm Lower Profile 0
