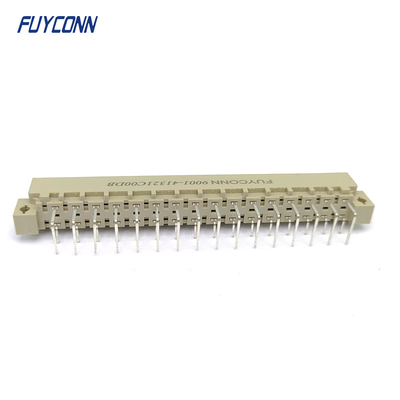

Power Type 32Pin DIN41612 Connector PCB Right Angle 2*16P 32P 5.08mm Male Connector

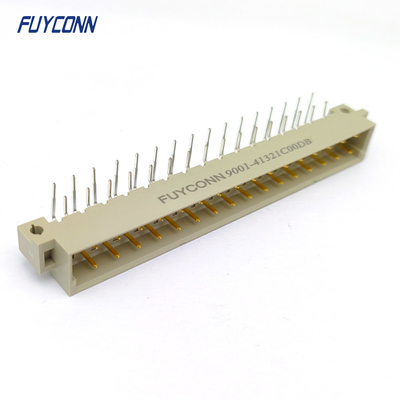

Power Type 32Pin DIN41612 Connector PCB Right Angle 2*16P 32P 5.08mm Male Connector

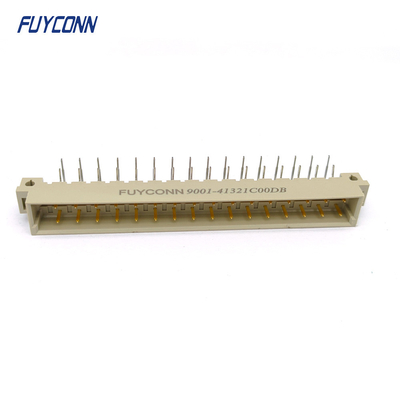

Power Type 32Pin DIN41612 Connector PCB Right Angle 2*16P 32P 5.08mm Male Connector

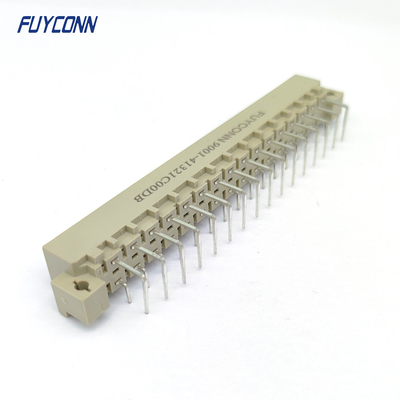

Power Type 32Pin DIN41612 Connector PCB Right Angle 2*16P 32P 5.08mm Male Connector Power Type 32Pin DIN41612 Connector PCB Right Angle 2*16P 32P 5.08mm Male Connector Power Type 32Pin DIN41612 Connector PCB Right Angle 2*16P 32P 5.08mm Male Connector Power Type 32Pin DIN41612 Connector PCB Right Angle 2*16P 32P 5.08mm Male Connector Power Type 32Pin DIN41612 Connector PCB Right Angle 2*16P 32P 5.08mm Male Connector

Large Image :  Power Type 32Pin DIN41612 Connector PCB Right Angle 2*16P 32P 5.08mm Male Connector

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Model Number: FUYDIN310-232S
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD0.6-USD2
Packaging Details: Tray + Carton
Delivery Time: 1-4 weeks
Payment Terms: T/T, Paypal
Supply Ability: 100000000/month

Power Type 32Pin DIN41612 Connector PCB Right Angle 2*16P 32P 5.08mm Male Connector

Description
Product Category: DIN41612 Connector Product Line: Power Connector
Number Of Terminal: 2*16P 32pin Number Of Rows: 2 Rows
Terminals Type: Right Angle Connector Type: PCB Type
Insulator Color & Material: Grey & PBT Contact Pin Material: Phosphor Bronze
Contact Plating: Gold Plating(1u",3u",5u",10u",15u") Pitch: 5.08mm
Gender: Male
High Light:

32Pin DIN41612 Connector

,

5.08mm DIN41612 Connector

,

PCB Right Angle DIN41612 Connector

90 degree R/A 2 rows 32P 5.08mm DIN41612 Connector, PCB Right Angle Male 2rows 2*16P 32Pin Power Type DIN 41612 Connector



Catalog: DIN 41612.pdf



DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VME bus system.


The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.



Product features:
1. Product Line: DIN41612 Connector
2. Product Name: Power DIN 41612 Connector
3. Connector Type Power Connector
4. Connector Gender: Male
5. Number of Position: 2*16 32pin
6.Number of rows: 2 rows
7. Contact Material: Brass
8. Contact Plating: 1U", 3U", 5U", 10U", 15U",30U"
9. Insulation Material: PBT
10.Color Gray
11. Terminal Type Right Angle
12. Pitch 5.08mm



Electrical Specifications
1. Current Rating: 5.6Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C



Power Type 32Pin DIN41612 Connector PCB Right Angle 2*16P 32P 5.08mm Male Connector 0



Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
