Product Details:
|
| Product Category: | DIN41612 Connector | Product Line: | Power Connector |
|---|---|---|---|
| Number Of Terminal: | 7P+8P 15pin | Number Of Rows: | 2 Rows |
| Terminals Type: | Straight / Vertical | Connector Type: | PCB Type |
| Insulator Color & Material: | Grey & PBT | Contact Pin Material: | Phosphor Bronze |
| Contact Plating: | Gold Plating(1u",3u",5u",10u",15u") | Pitch: | 5.08mm |
| Gender: | Female | ||
| High Light: | 5.08mm DIN41612 Connector,32P DIN41612 Connector,2*16P DIN41612 Connector |
||

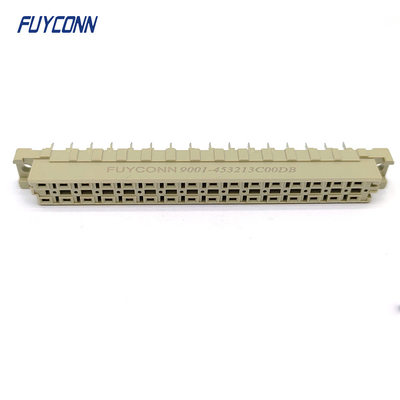

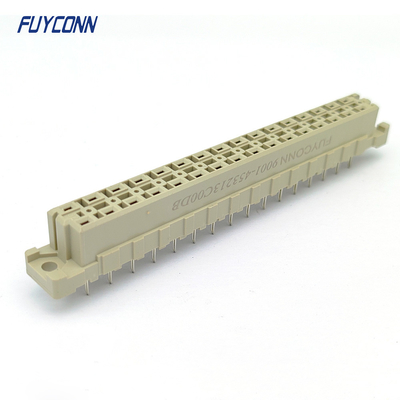

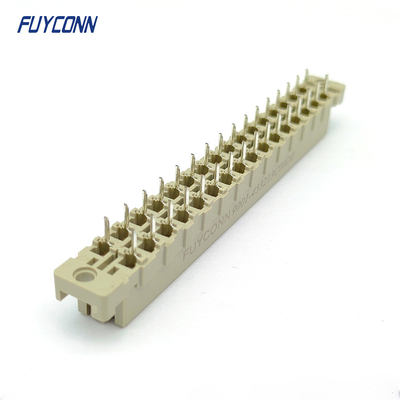

180 degree R/A 2 rows 32P Female Power Type DIN41612 Connector, PCB Vertical Female 2rows 2*16P 32Pin 5.08mm DIN 41612 Connector
Catalog: DIN 41612.pdf
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VME bus system.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.
| Product features: | |
| 1. Product Line: | DIN41612 Connector |
| 2. Product Name: | Power DIN 41612 Connector |
| 3. Connector Type | Power Connector |
| 4. Connector Gender: | Female |
| 5. Number of Position: | 2*16P 32pin |
| 6.Number of rows: | 2 rows |
| 7. Contact Material: | Brass |
| 8. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
| 9. Insulation Material: | PBT |
| 10.Color | Gray |
| 11. Terminal Type | Straight |
| 12. Pitch | 5.08mm |
| Electrical Specifications | |
| 1. Current Rating: | 5.6Amp |
| 2. Voltage rating: | DC 1000v per minute |
| 3. Insulator Resistance: | 1000Mn MIN.(at 500V DC) |
| 4. Operation Temperature: | -55°C to +105°C |
Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
